Запчасти Case IH STEIGER 350 (21.155.05) - TRANSMISSION - POWER SHIFT - 5TH OUTPUT SHAFT, PS4, 8C AND 8.5C (21) - TRANSMISSION

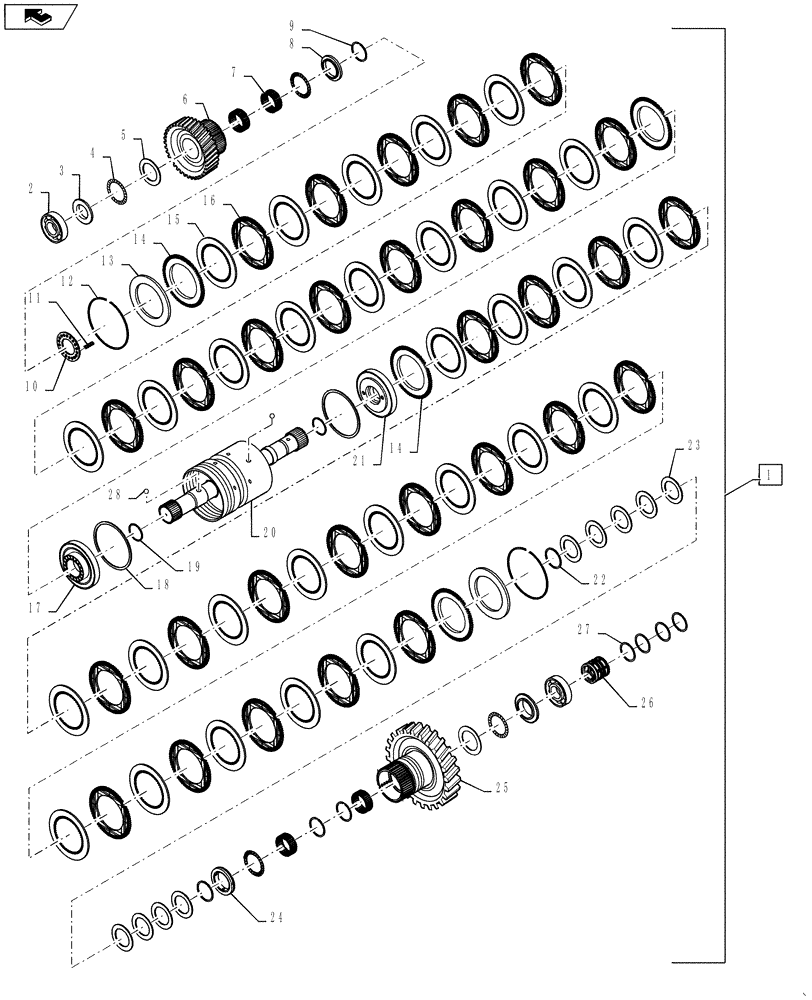

Схема запчастей Case IH STEIGER 350 - (21.155.05) - TRANSMISSION - POWER SHIFT - 5TH OUTPUT SHAFT, PS4, 8C AND 8.5C (21) - TRANSMISSION
7
2
16
21
23
27
14
12
1
20
5
13
25
9
3
17
11
26
15
10
6
18
19
22
8
14
28
4
home
24

Артикул

Название

Примечание

Количество

1

87350349

CLUTCH INPUT SHAFT

5th, 8 Clutch, 8C

1шт.

1

87350342

CLUTCH INPUT SHAFT

5th, 8 Clutch, 8.5C

1шт.

2

84314690

ROLLER BEARING

Taper

2шт.

3

364831A1

THRUST WASHER

2шт.

4

84314710

THRUST BEARING

Needle

4шт.

5

358908A1

THRUST WASHER

2шт.

6

87350355

DRIVEN GEAR

5R

1шт.

7

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

4шт.

8

87350321

THRUST WASHER

1шт.

9

S5040S00F

RING

Retaining

4шт.

10

362615A1

PLATE

Spring

1шт.

11

364833A1

SPRING

Return

16шт.

12

428108A1

RING, SNAP

2шт.

13

87350360

PLATE

End, 8 Clutch, 8C Only

2шт.

13

370554A1

CLUTCH DISC

End, 8.5C Only

2шт.

14

370555A1

CLUTCH DISC

Faced

4шт.

15

S4070S00F

CLUTCH DISC,2.4mm Thk

Steel, 2.4mm, 0.094

1шт.

15

S4110S00F

CLUTCH DISC,2.1mm Thk

Steel, 2.1mm, 0.083

1шт.

16

370556A1

CLUTCH DISC

Faced, 8 Clutch

1шт.

17

370558A1

PISTON

8 Clutch RR

1шт.

18

87431400

RING

D-Ring

2шт.

19

S4410S00F

RING

Seal

2шт.

20

87350368

SHAFT

Drum Assy, 5th, 8C Only

1шт.

20

87350363

SHAFT

Drum Assy, 5th, 8.5C Only

1шт.

21

370562A1

PISTON

8 Clutch FR

1шт.

22

362611A1

SPACER

Needle Bearing

1шт.

23

364826A1

PLATE

Spring

8шт.

24

87350331

THRUST WASHER

1шт.

25

87350374

DRIVEN GEAR

5F

1шт.

26

370568A1

CARRIER

Piston

1шт.

27

S4150S00F

RING

Seal

4шт.

28

S14701960

BALL,3.968mm OD

Steel

2шт.

Выбрано товаров: 32
