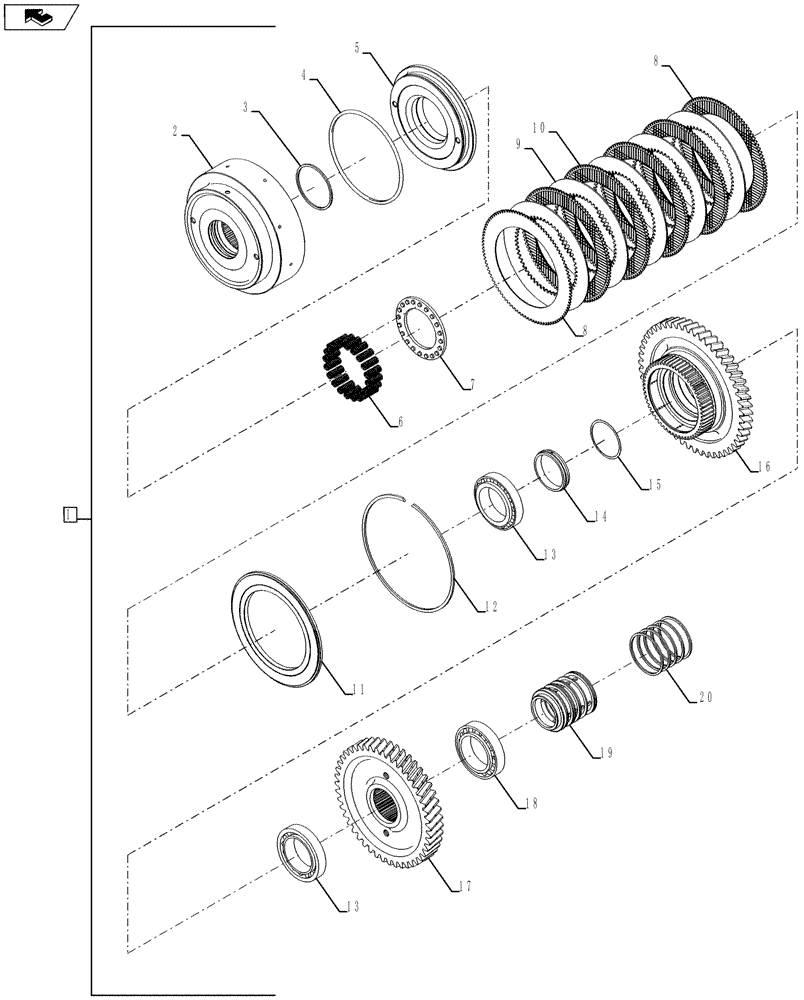

Запчасти Case IH STEIGER 350 (21.155.02[02]) - TRANSMISSION - POWER SHIFT - 1ST INPUT SHAFT, PS4, 8C AND 8.5C (21) - TRANSMISSION

1

87552053

CLUTCH INPUT SHAFT

1st, 7" Clutch, 8C, Inc. 2 - 20 & Fig 21.155.03(01)

1шт.

1

87552050

CLUTCH INPUT SHAFT

1st, 7" Clutch, 8.5C, Inc. 2 - 20 & Fig 21.155.03(01)

1шт.

2

87552054

DRUM

1F Clutch

1шт.

3

S5510S00F

RING

Seal

1шт.

4

87431391

RING

D-Ring

3шт.

5

84314650

PISTON

1F Clutch

1шт.

6

358971A1

SPRING

Return

20шт.

7

87552056

RETAINER

1F Spring

1шт.

8

370555A1

CLUTCH DISC

Faced

2шт.

9

S4110S00F

CLUTCH DISC,2.1mm Thk

Steel, 2.10mm

5шт.

9

S4070S00F

CLUTCH DISC,2.4mm Thk

Steel, 2.40mm, 8.5C Only

5шт.

10

370556A1

CLUTCH DISC

8" Faced

4шт.

11

442803A1

PLATE

Clutch End

1шт.

12

428108A1

RING, SNAP

1шт.

13

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

4шт.

14

359203A1

SPACER

1F Bearing

1шт.

15

352818A1

SHIM,0.15mm Thk

1шт.

15

352819A1

SHIM,0.18mm Thk

1шт.

15

352820A1

SHIM,0.20mm Thk

1шт.

15

352821A1

SHIM,0.25mm Thk

1шт.

15

352822A1

SHIM,0.30mm Thk

1шт.

15

352823A1

SHIM,0.50mm Thk

1шт.

16

359204A1

GEAR

1F

1шт.

17

87350261

DRIVING GEAR

1шт.

18

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

Taper Rolling

1шт.

19

359207A1

CARRIER

1шт.

20

S4150S00F

RING

Seal

5шт.
