Запчасти Case IH STEIGER 350 (10.400.02) - COOLING SYSTEM - ENGINE - STEIGER 350 (10) - ENGINE

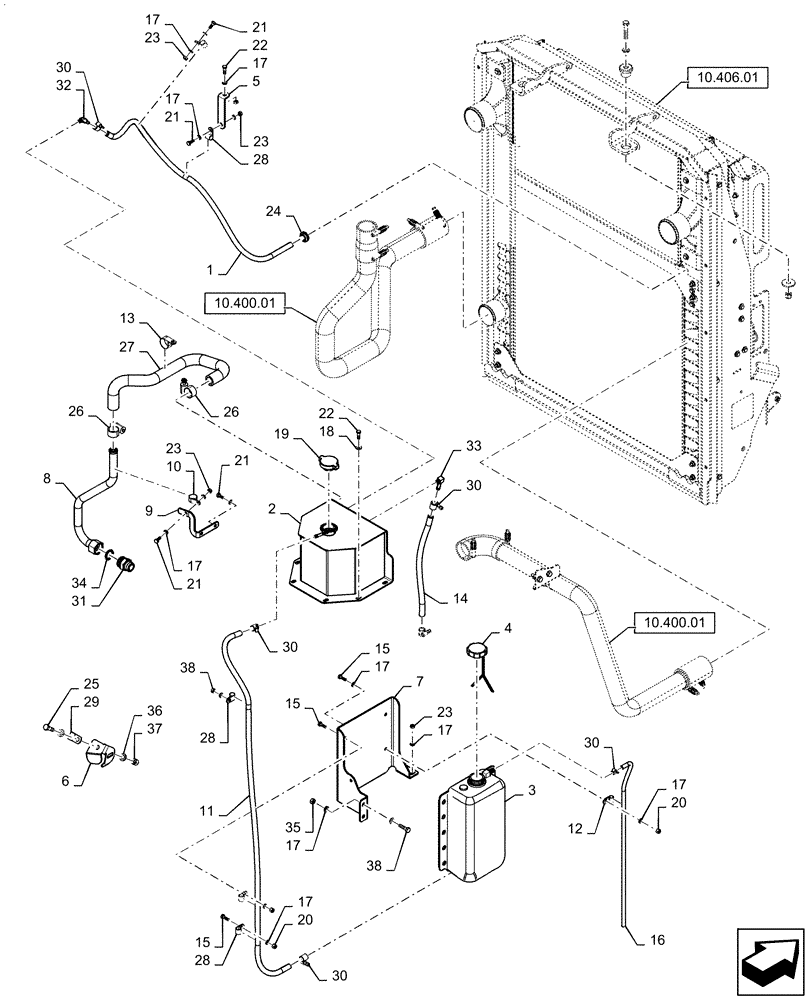

Схема запчастей Case IH STEIGER 350 - (10.400.02) - COOLING SYSTEM - ENGINE - STEIGER 350 (10) - ENGINE
9
14
23
6
22
17
15
23
34
10
30
21
32
15
26
8
12
20
26
17
21
17
35
15
23
18
17
17
21
17
13
10.406.01
28
10.400.01
25
2
4
30
21
27
28
10.400.01
20
5
17
3
23
17
38
37
30
31
30
33
17
7
29
30
24
36
22
28
11
19
38
1
16

Артикул

Название

Примечание

Количество

1

87619895

HOSE,7.90mm ID x 390.00mm L

Coolant Overflow

1шт.

2

87384580

TANK

Deaeration

1шт.

3

87481454

BOTTLE

Recovery, 5 Qt.

1шт.

4

238903A1

FILLER CAP

Coolant Recovery Bottle

1шт.

5

84306773

BRACKET, SUPPORTING

Fuel Line Support, Front

1шт.

6

84421288

SUPPORT

Dipstick

1шт.

7

84214560

BRACKET, SUPPORTING

Watter Bottle Support

1шт.

8

84280519

TUBE

Surge Tank Return

1шт.

9

84423185

BRACKET, SUPPORTING

Surge Tank Return Tube

1шт.

10

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

11

435458A1

HOSE

Deaeration Tank to Recovery Bottle

1шт.

12

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

13

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

14

31-1306

HOSE,9.5 mm ID x 406.40 mm, SAE 30R2

1шт.

15

615-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

16

87713484

HOSE,0.28" ID x 28.00"

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

20шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

19

A170241

RADIATOR CAP

15 PSI

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

21

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

5шт.

22

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

7шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

24

361191A1

GROMMET

1шт.

25

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

26

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.

27

84214527

HOSE

Formed, 1 In. ID

1шт.

28

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

5шт.

29

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

1шт.

30

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

6шт.

31

84322099

FITTING

Incl 34

1шт.

32

84285334

FITTING

45 Degree, Barbed to 1/8 NPTF

1шт.

33

87584286

ELBOW,3/8" Hose Barb x 1/8" NPTF

90 Degree, Beaded to 1/8 NPTF

1шт.

34

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

36

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

37

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

38

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 38
