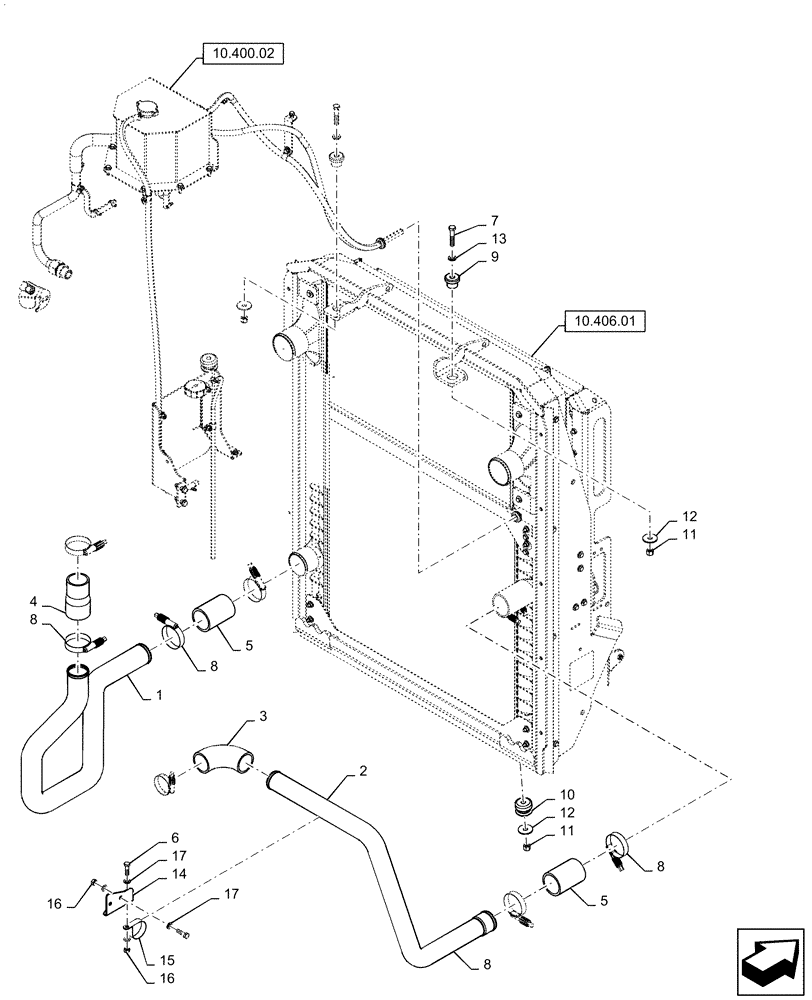

Запчасти Case IH STEIGER 350 (10.400.01) - COOLING SYSTEM - ENGINE - STEIGER 350 (10) - ENGINE

1

84560312

TUBE

Lower Radiator

1шт.

2

84293680

TUBE

Upper Radiator

1шт.

3

84286635

HOSE

Elbow, Upper Radiator

1шт.

4

87437994

RADIATOR HOSE,57.20 mm ID, 63.50 mm ID x 125.00 mm, SAE 20R4 CLASS D1

Lower

1шт.

5

47472185

RADIATOR HOSE,63.5mm ID x 107.5mm L, SAE 20R4

2шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

7

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

8

L115548

CLAMP,57.15mm - 79.38mm

8шт.

9

CASL13142

BUSHING

2шт.

10

435465A1

RUBBER MOUNTING

2шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

12

435433A1

WASHER,13.5mm ID x 44.5mm OD x 3mm Thick

4шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

14

84287007

BRACKET, SUPPORTING

Tube Support

1шт.

15

515-23571

CLAMP,2 1/4", Insul, 3/8" Bolt

1шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.
