Запчасти Case IH STEIGER 350 (90.160.05) - CONSOLE AND SUPPORT - FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

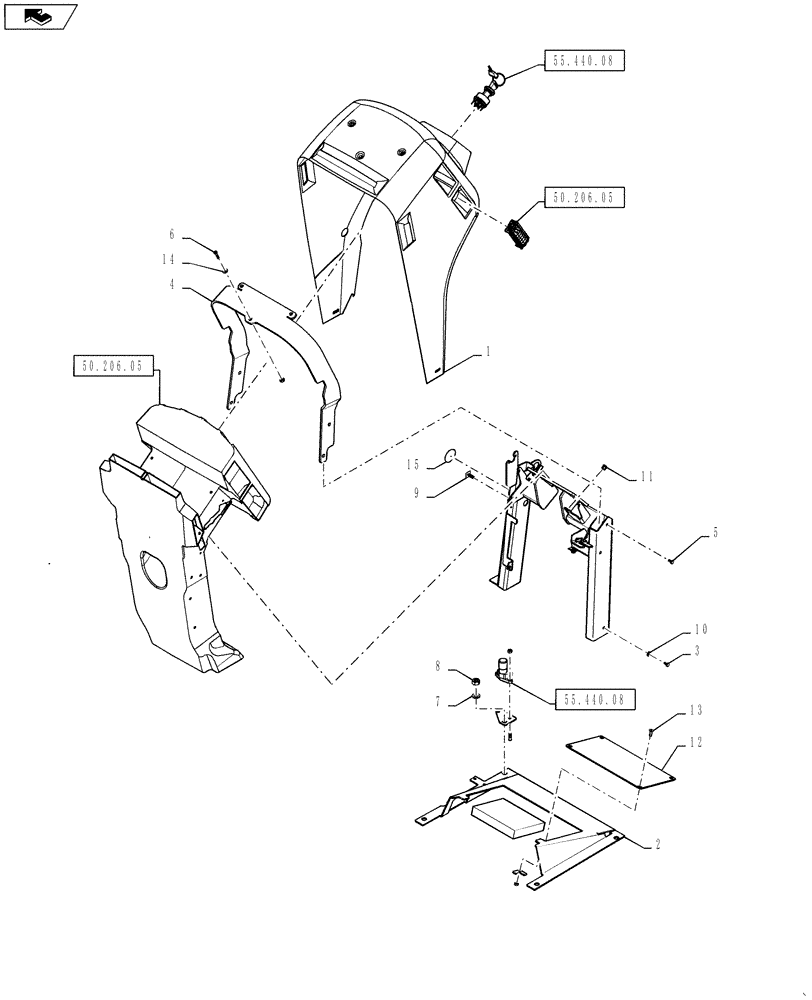

Схема запчастей Case IH STEIGER 350 - (90.160.05) - CONSOLE AND SUPPORT - FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS
50.206.05
55.440.08
13
8
15
1
11
10
55.440.08
6
4
2
14
3
home
50.206.05
7
9
5
12

Артикул

Название

Примечание

Количество

1

360446A1

CONSOLE

Front

1шт.

2

84204769

MOUNT

Steering

1шт.

3

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

2шт.

4

280566A1

SUPPORT

Front Console

1шт.

5

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.

6

436276A1

SCREW,BHD, M6 x 1 x 30mm, Class 10.9

Button Head

3шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

829-1310

NUT,M10, Cl 10

4шт.

9

301098A1

CLIP

Snap-In

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

A67295

PLUG

Control Cable

1шт.

12

87433404

PLATE

Access

1шт.

13

843-1616

SCREW,Flat , M6 x 16mm, Cl 4.8

4шт.

14

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

3шт.

15

376597A2

DECAL

Hole Cover

1шт.

Выбрано товаров: 15
