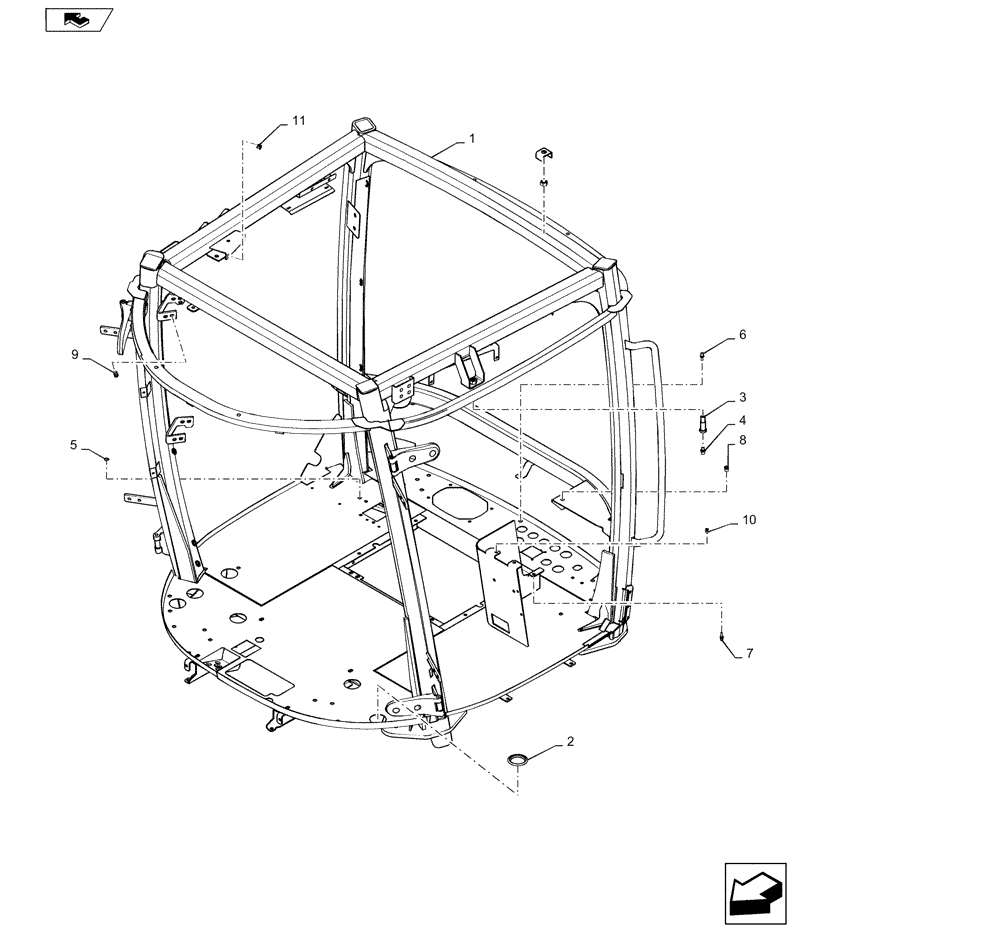

Запчасти Case IH STEIGER 350 (90.150.01[01]) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84392505

CAB BODY

Non Suspended Cab, Steiger 350 - 450

1шт.

1

84392507

CAB BODY

Non Suspended Cab, Steiger 450 Scraper Version

1шт.

1

84392510

FRAME

Suspended Cab, Steiger 350 - 450

1шт.

2

353-593

PLUG

Button Recessed, Nominal 2.500

2шт.

3

442085A1

MOUNTING PARTS

Ball Stud

2шт.

4

3234063R1

BALL STUD,M10 x 1.5

2шт.

5

64-146

PLUG

Cap, .500 In Hole

4шт.

6

408567A1

STUD

Threaded Captive

12шт.

7

440570A1

STUD

Threaded Captive

12шт.

8

408566A1

INSERT,M8

M8 Thread, Knurled Open

5шт.

9

379540A1

INSERT,M8

M8 Thread, Knurled Open

14шт.

10

404287A1

INSERT,M6

M6 Thread, Knurled Open

5шт.

11

322072A2

FASTENER

Plastic Expansion

7шт.
