Запчасти Case IH STEIGER 350 (90.124.01[01]) - SEAT - OPERATORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

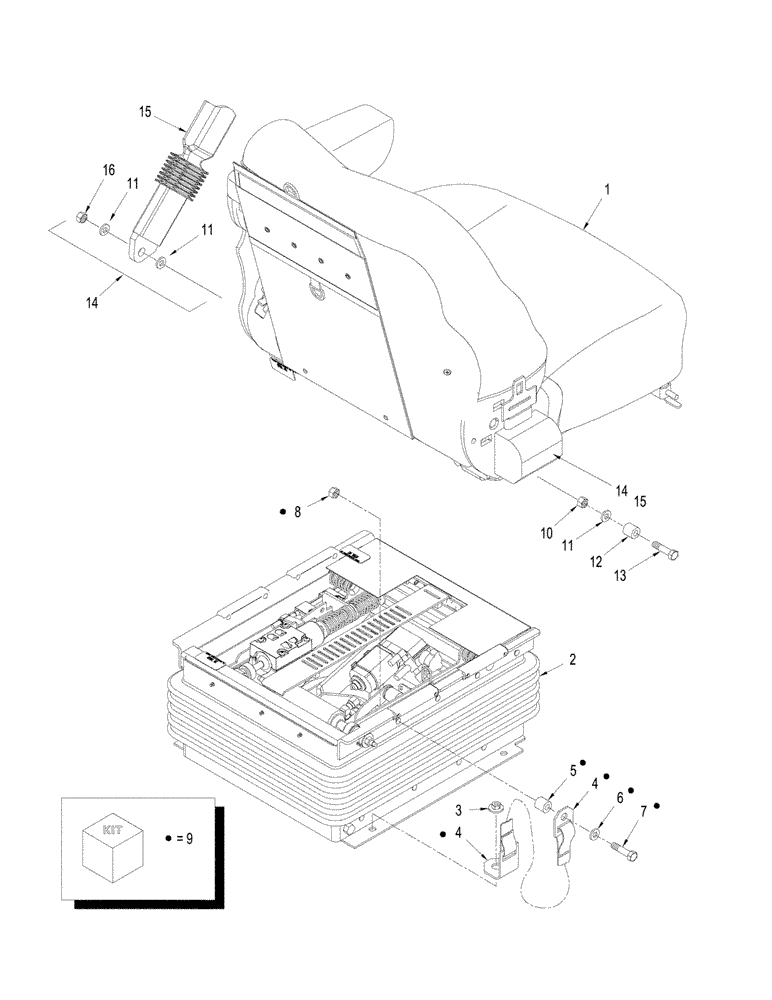

Схема запчастей Case IH STEIGER 350 - (90.124.01[01]) - SEAT - OPERATORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
16
4
14
13
9
9
9
1
7
4
15
9
9
15
9
3
10
6
9
11
5
11
2
11
8
12
14

Артикул

Название

Примечание

Количество

1

84337499

DRIVER SEAT

Cloth, Standard, w/o Heat

1шт.

1

84337501

DRIVER SEAT

Cloth, Standard - Delux w/Heat

1шт.

1

84337503

DRIVER SEAT

Cloth, Delux, Semi-Active w/heat

1шт.

1

84337505

DRIVER SEAT

Cloth, Luxury, Leather w/Heat

1шт.

2

84406039

SERVICE KIT

Suspension, Standard / Delux

1шт.

2

84406040

SERVICE KIT

Suspension, Luxury

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

4

389277A1

SAFETY BELT ,48mm W x 283mm L

2шт.

Scraper Application

1шт.

5

87431628

SPACER

Spacer

2шт.

Scraper Application

1шт.

6

87039401

WASHER,0.41" ID x 0.81" OD x 0.13" Thk

2шт.

7

86575418

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

2шт.

8

87039402

NUT,3/8"-16, GB

2шт.

9

87431487

FIP KIT

Tether Belt

1шт.

Scraper Application

1шт.

10

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

.500" x 1.250" x .08" Thk

3шт.

12

87313413

TUBE SPACER

Steel, .875" x .50"

1шт.

13

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

14

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

, Serial Range: -JEE0106701

1шт.

15

84257916

SEAT BELT,48mm W x 1447.8mm L

, Start Serial: JEE0106701

1шт.

Выбрано товаров: 22
