Запчасти Case IH STEIGER 350 (90.115.02) - ARMREST - MECHANICAL ADJUST (90) - PLATFORM, CAB, BODYWORK AND DECALS

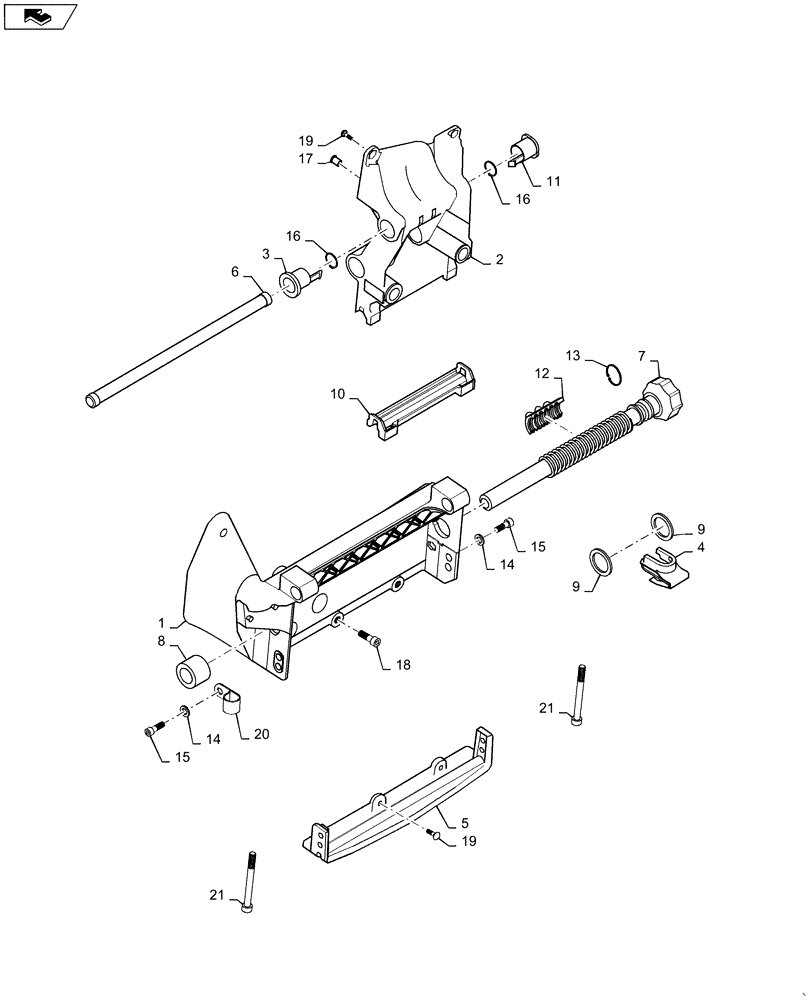

Схема запчастей Case IH STEIGER 350 - (90.115.02) - ARMREST - MECHANICAL ADJUST (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
15
19
17
13
2
home
19
14
10
21
5
7
8
18
16
14
9
4
21
6
1
9
20
11
15
12
16

Артикул

Название

Примечание

Количество

1

47360983

SLIDE

Fixed, Armrest Adjuster

1шт.

2

47360984

SLIDE

Mobile, Armrest Adjuster

1шт.

3

84146834

BUSHING,14.3mm ID x 20.36mm OD x 43.3mm L

Rear

1шт.

4

84146837

SPACER,18mm ID x 29mm OD

Front

1шт.

5

84236407

SUPPORT

Pillow, Armrest Adjuster

1шт.

6

84146847

SHAFT,14mm OD x 280mm L

Guide, Armrest Adjuster

1шт.

7

84163864

ADJUSTMENT SCREW,309 mm L

Armrest

1шт.

8

87746925

SPACER

1шт.

9

84146848

FRICTION WASHER,24.4mm ID x 32mm OD x 1.7mm Thk

2шт.

10

84236392

SLIDE GUIDE

Pillow, , Armrest Adjuster

1шт.

11

84146826

BUSHING,14.3mm ID x 20.36mm OD x 40.3mm L

Front

1шт.

12

84146843

HALF-BUSHING,48mm L

Adjuster

1шт.

13

81865873

CLIP,19.40mm D

1шт.

14

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

6шт.

15

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

6шт.

16

11066271

RING,Ext, 14mm Dia

Retaining, EXT REG 14MM CSS ZNM

2шт.

17

15624411

RIVET,Flat, M6 OD x 16mm L

6X16 Flat HD Threaded Tubular Hex

4шт.

18

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

4шт.

19

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

FLAT-HD W/Collar M6X22 8.8 BZN

4шт.

20

84232921

CABLE CLIP,25mm ID

1шт.

21

10589621

SCREW,Hex Skt, M6 x 80mm, Cl 8.8

Hex Socket, M6 x 80, 8.8

2шт.

Выбрано товаров: 21
