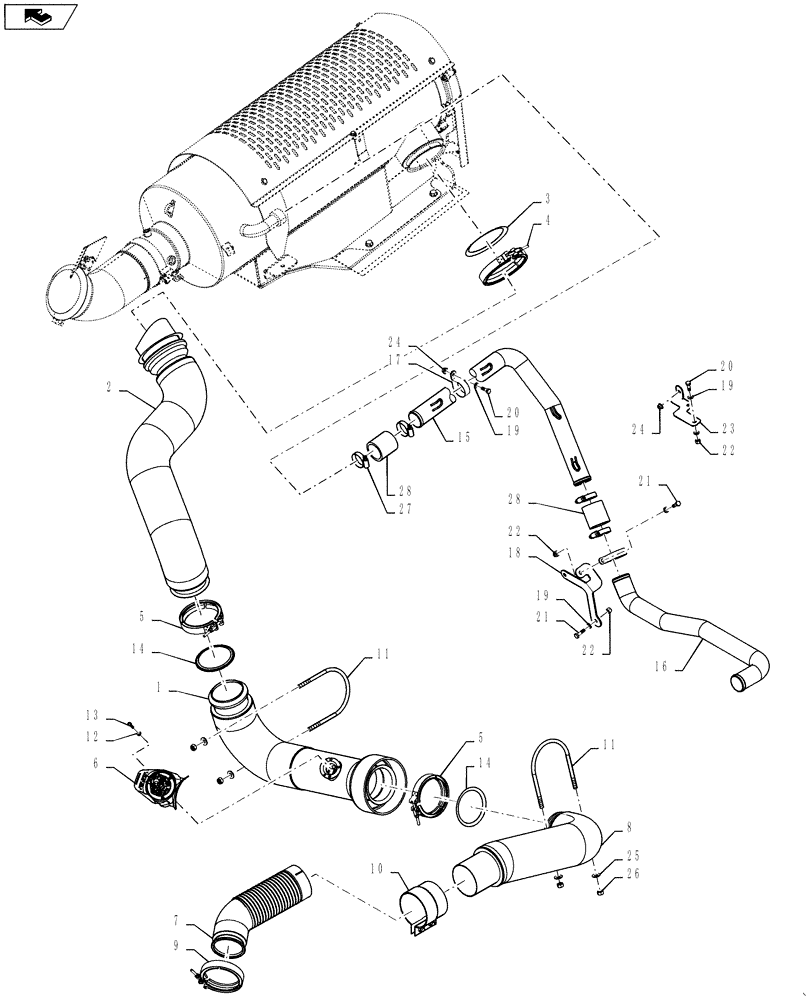

Запчасти Case IH STEIGER 350 (10.254.01[07]) - EXHAUST SYSTEM - HORIZONTAL, STEIGER 350, EUROPE ONLY (ASN: ZCF1400001) (10) - ENGINE

1

84412504

TUBE

Doser Assy.

1шт.

2

84490172

TUBE

1шт.

3

84349224

GASKET

1шт.

4

84469765

CLAMP,Exhaust; 5"

Exhaust

1шт.

5

84356331

CLAMP,118mm OD x 26mm W

Exhaust

2шт.

6

84247021

MODULE,Dosing Injector

De Nox2 Dosing - 6kg/h

1шт.

7

84306557

EXHAUST SYSTEM PIPE,102.74 mm ID x 106.10 mm OD x 329.6, 77.5 mm L

1шт.

8

84306559

TUBE,101.60 mm, 127.00 mm OD

1шт.

9

86997808

CLAMP

Hose

1шт.

10

90-8319T1

CLAMP

Exhaust

1шт.

11

84354957

U-BOLT

2шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

13

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

3шт.

14

84349222

GASKET,1.3mm Thk

Exhaust

2шт.

15

84490143

AIR INTAKE TUBE

1шт.

16

84490169

AIR INTAKE TUBE

1шт.

17

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

18

84491535

BRACKET

Support

1шт.

19

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

21

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

22

412250

NUT,M8 x 1.25, Cl 8

3шт.

23

84499455

BRACKET

Harness Support

1шт.

24

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

25

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

12шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

27

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

28

84157240

HOSE,50.80 mm ID x 65.00 mm, SAE 30R7, SAE J30

2шт.
