Запчасти Case IH STEIGER 350 (90.110.02) - MONITOR - MOUNTING - WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

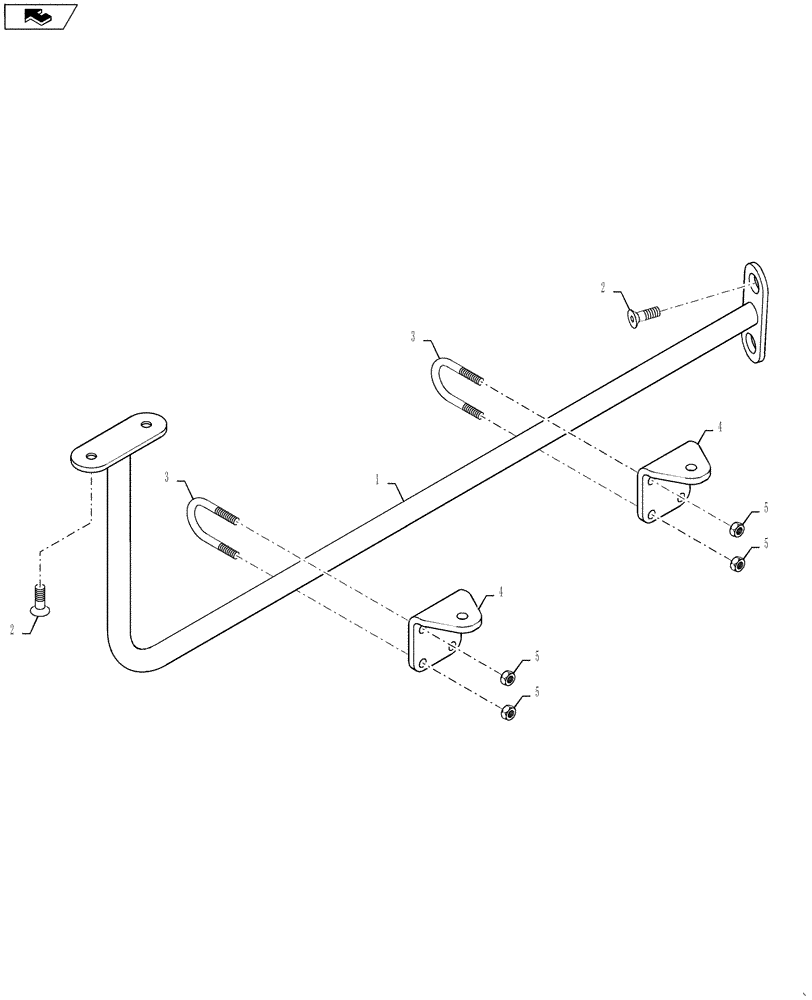

Схема запчастей Case IH STEIGER 350 - (90.110.02) - MONITOR - MOUNTING - WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
5
home
2
5
3
4
3
4
2
5
5

Артикул

Название

Примечание

Количество

1

84143874

BAR

Window Monitor Mount

1шт.

2

14442131

SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 10.9

FHSS, M8 x 25mm

4шт.

3

87526197

U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L

4шт.

4

87530660

BRACKET

Monitor Mount

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

Выбрано товаров: 5
