Запчасти Case IH STEIGER 350 (90.108.08) - DECALS - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS

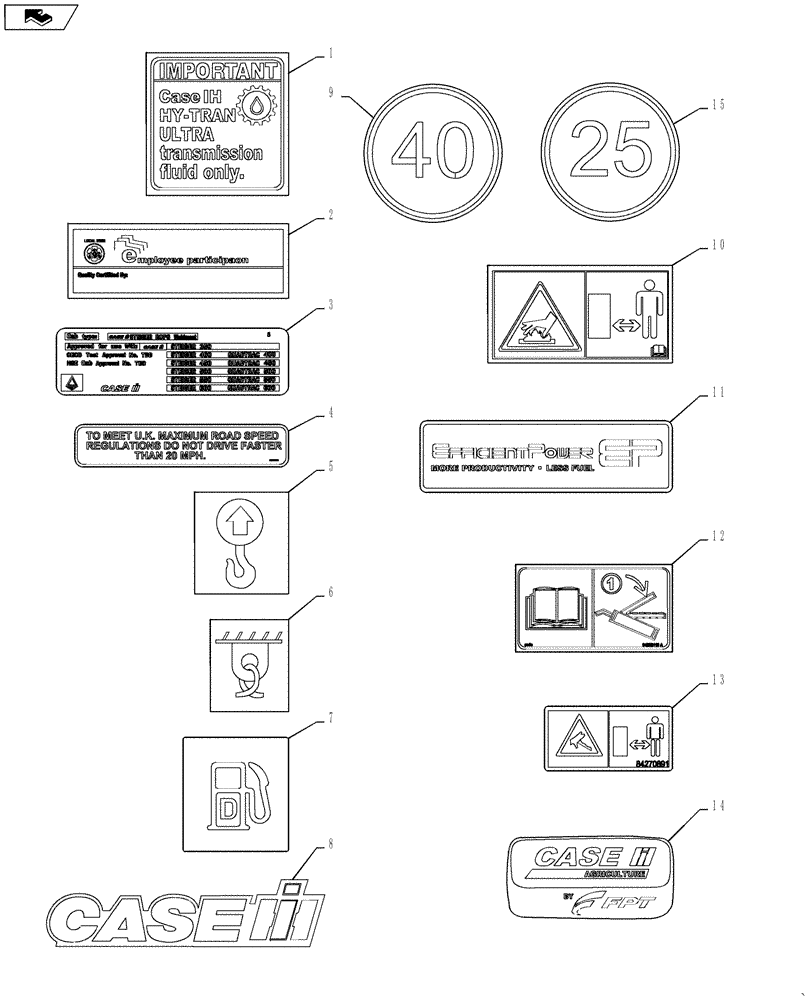

Схема запчастей Case IH STEIGER 350 - (90.108.08) - DECALS - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
8
home
6
4
5
9
7
11
14
3
2
1
12
15
10

Артикул

Название

Примечание

Количество

1

84362257

DECAL

Trans Fluid, Hytran

1шт.

2

NSS

NOT SOLD SEPARAT

Quality Assurance

1шт.

3

NSS

NOT SOLD SEPARAT

ROPS / Noise Certification - Eurpean - Incl with ROPS

1шт.

4

82033960

DECAL

Road Speed (If Equipped)

1шт.

5

139729A1

DECAL

Lift

4шт.

6

139728A1

DECAL

Tie Down

4шт.

7

85804338

DECAL,50mm x 50mm H

Diesel

1шт.

8

87681854

DECAL

Case - IH 200 x48

1шт.

9

1532083C1

DECAL

Speed Indicator 40 KPH (If Equipped)

1шт.

10

87415865

WARNING DECAL

Hot Surfaces

1шт.

11

84390356

DECAL

Engine Power

1шт.

12

84396880

DECAL

Grease Information

1шт.

13

84270891

DECAL

Warning

2шт.

14

84373430

EMBLEM

Case - IH Engine

1шт.

15

84072701

DECAL

Speed Indicator 25 KPH - France, Start Serial: ZDF218182

1шт.

Выбрано товаров: 15
