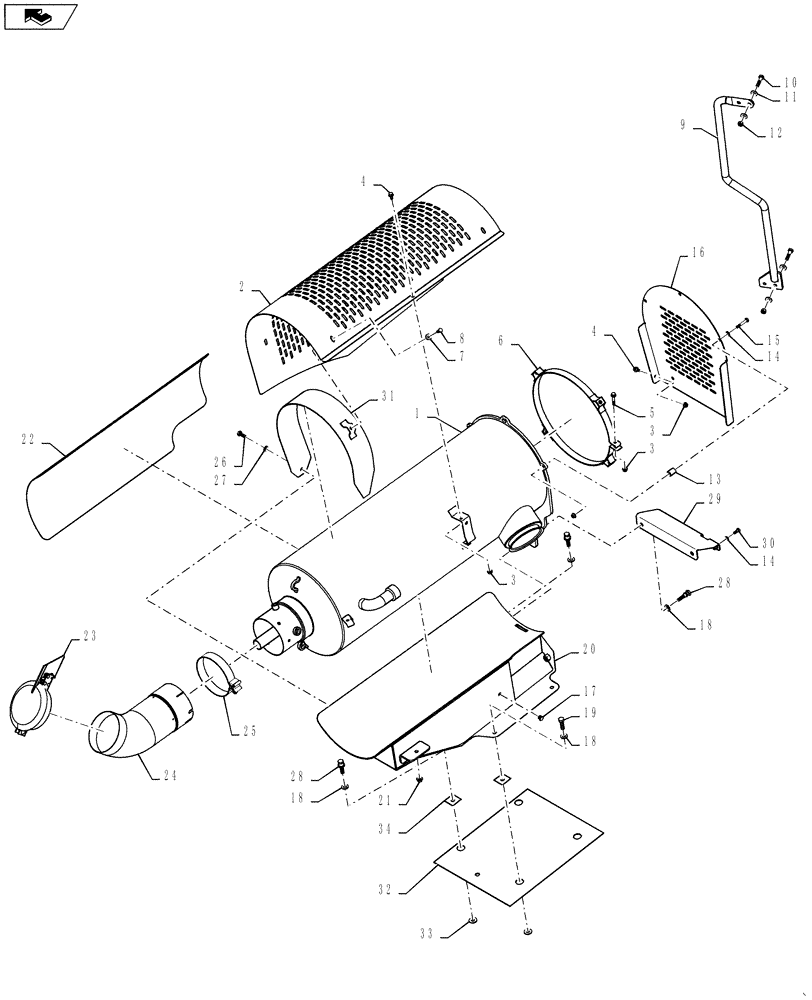

Запчасти Case IH STEIGER 350 (10.254.01[06]) - EXHAUST SYSTEM - HORIZONTAL, STEIGER 350, EUROPE ONLY (ASN: ZCF1400001) (10) - ENGINE

1

84540156

MUFFLER,Aspirated

SCR, 28L Volume

1шт.

2

84541053

HEAT SHIELD

Exhaust

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

4

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

5

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

6

84474347

CLAMP BRACKET

1шт.

7

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

8

87646176

LOCK BOLT,Hex, M8 x 20mm, Cl 10.9

4шт.

9

84489803

HANDLE

Grab

1шт.

10

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

11

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

12шт.

12

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

13

84490170

SPACER,9.5mm ID x 19.05mm OD x 25mm L

Heat Shield

3шт.

14

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

5шт.

15

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

3шт.

16

84490165

HEAT SHIELD

Exhaust

1шт.

17

408566A1

INSERT,M8

If Equipped

1шт.

18

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

19

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

3шт.

20

84542576

MOUNT

SCR Craddle

1шт.

21

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

22

84491524

HEAT SHIELD

SCR Heat

1шт.

23

84364062

CAP

Rain

1шт.

24

84492759

ELBOW

Assy.

1шт.

25

87430634

CLAMP,159.5mm ID

1шт.

26

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

27

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

1шт.

28

84364685

SPECIAL BOLT

Break

3шт.

29

84490168

BRACKET

Mounting

1шт.

30

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

31

84490162

SECURING STRAP

Muffler

1шт.

32

84552666

HEAT SHIELD

SCR

1шт.

33

895-15012

WASHER,M12 x 28 x 2.5

4шт.

34

84475525

TAPE

Aluminum

4шт.
