Запчасти Case IH STEIGER 350 (90.100.01[01]) - ENGINE HOOD - GRILL AND SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

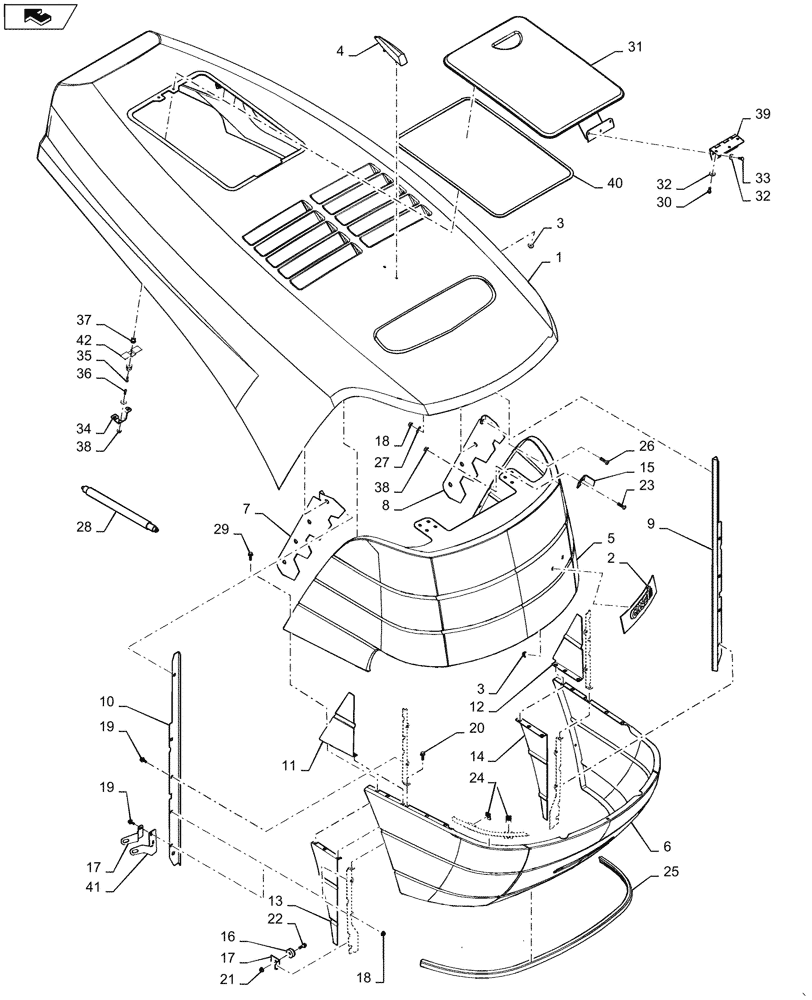

Схема запчастей Case IH STEIGER 350 - (90.100.01[01]) - ENGINE HOOD - GRILL AND SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
18
37
19
40
38
1
23
22
34
33
3
17
13
2
17
15
4
11
3
21
39
19
8
26
home
27
28
18
41
31
24
12
32
32
9
42
5
16
14
29
10
7
25
36
38
30
35
6

Артикул

Название

Примечание

Количество

1

84413151

HOOD

Assembly

1шт.

2

87716230

EMBLEM

Case IH

1шт.

3

131-431

PUSH-ON NUT,Self, Threading, 1/4"

8шт.

4

87353799

GUIDE

Hood Sight

1шт.

5

84193730

GRILLE

Upper Weldment

1шт.

6

84193734

GRILLE

Lower Weldment

1шт.

7

84341421

BRACKET, SUPPORTING

Bracket - RH Attachment Assy.

1шт.

8

84341425

BRACKET, SUPPORTING

Bracket - LH Attachment Assy.

1шт.

9

84341427

BRACKET, SUPPORTING

Bracket - LH Seal

1шт.

10

84341426

BRACKET, SUPPORTING

Bracket - RH Seal

1шт.

11

84197331

PANEL

Upper RH

1шт.

12

84197332

PANEL

Upper LH

1шт.

13

84197333

PANEL

Lower RH

1шт.

14

84197334

PANEL

Lower LH

1шт.

15

84171740

PLATE

Clip

4шт.

16

84167057

GUIDE

2шт.

17

84347347

BRACKET

Bracket, Hood Locking

1шт.

18

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

33шт.

19

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

11шт.

20

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

16шт.

21

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

22

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

10шт.

23

847-3616

SERRATED SCREW,Sl Truss, M6 x 16mm, Cl 10.9

2шт.

24

833-40306

SPRING NUT,M6, U

12шт.

25

84197326

SEAL

Lower Grill

1шт.

26

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

27

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

16шт.

28

87710344

CYLINDER

Gas Spring

2шт.

29

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

30

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

8шт.

31

84413156

ACCESS COVER

Filter Access

1шт.

32

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

33

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

34

84414131

SECURING STRAP

Latch

1шт.

35

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

36

84364039

SCREW,Phil Flat Hd, Csk, M5 x 16mm, Cl 4.8

M5 x 16 FLH C/R Type H, 4.8 DOR

1шт.

37

84414133

LATCH

Stud Plate

1шт.

38

832-10405

NUT,M5 x .8, Cl 8

3шт.

39

87738661

FIXED HINGE

Flat - For Item 31 (Not Shown)

1шт.

40

84247283

SEAL

Seal, Hood Access

1шт.

41

84347350

BRACKET

Hood Locking

1шт.

42

NSS

NOT SOLD SEPARAT

Stud Plate, Incl In 31

1шт.

Выбрано товаров: 42
