Запчасти Case IH STEIGER 350 (88.090.05) - DIA KIT, ADDITIONAL PRODUCTS - DECEL PEDAL KIT (88) - ACCESSORIES

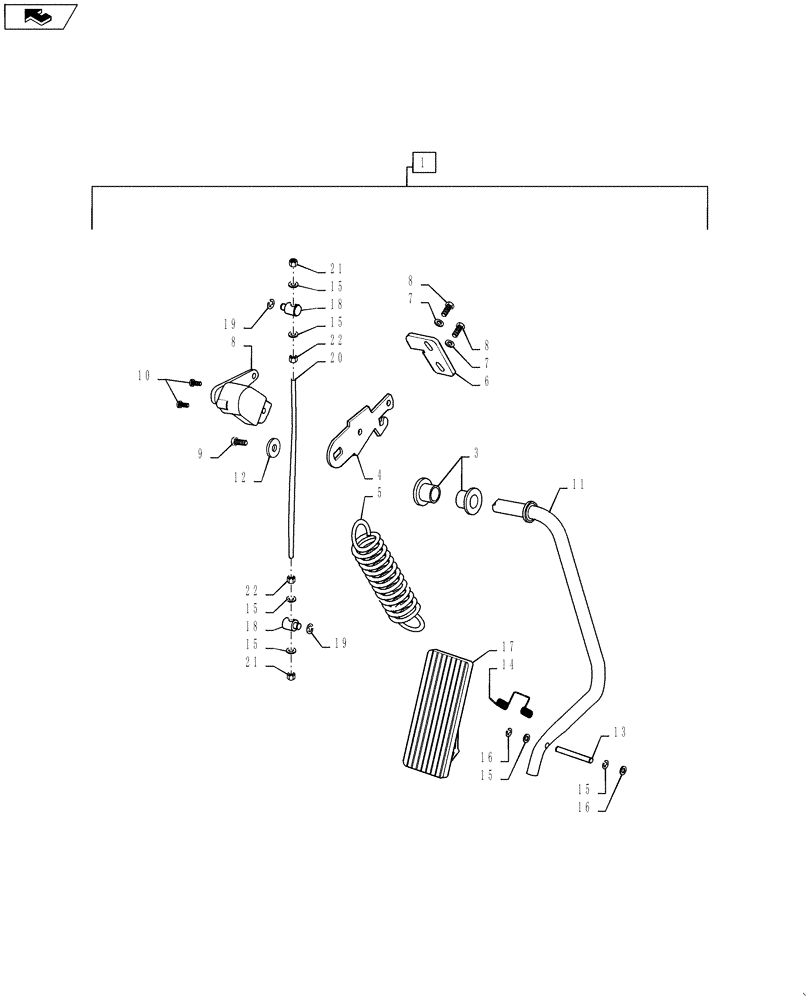

Схема запчастей Case IH STEIGER 350 - (88.090.05) - DIA KIT, ADDITIONAL PRODUCTS - DECEL PEDAL KIT (88) - ACCESSORIES
14
21
1
16
17
12
11
15
13
9
18
5
home
8
8
18
22
6
15
7
7
15
8
10
19
21
3
19
15
15
22
4
15
20
16

Артикул

Название

Примечание

Количество

1

84302098

KIT

DECEL PEDAL - Incl 2 - 21 - See Figure 90.112.02

1шт.

2

84302102

INSTRUCTION

Installation

1шт.

3

300891A1

FLANGED BEARING

BRONZE

2шт.

4

84225233

BRACKET, SUPPORTING

1шт.

5

278211A1

SPRING

EXTENSION

1шт.

6

281115A1

BRACKET

DECEL STOP

1шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

84129020

SENSOR

FOOT THROTTLE

1шт.

9

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

3шт.

10

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

2шт.

11

328353A2

ROD

DECELERATOR

1шт.

12

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

13

255291A1

PIN,5mm OD x 56mm L

THROTTLE PAD

1шт.

14

256776A1

SPRING

FOOT THROTTLE

1шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

16

800-435

CIRCLIP,M5

2шт.

17

297853A2

PEDAL

FOOT THROTTLE

1шт.

18

307475A1

PIVOT

CONTROL CABLE ATTACH

2шт.

19

800-316

CIRCLIP,M6

2шт.

20

84216199

THREADED ROD

1шт.

21

832-10405

NUT,M5 x .8, Cl 8

4шт.

Выбрано товаров: 21
