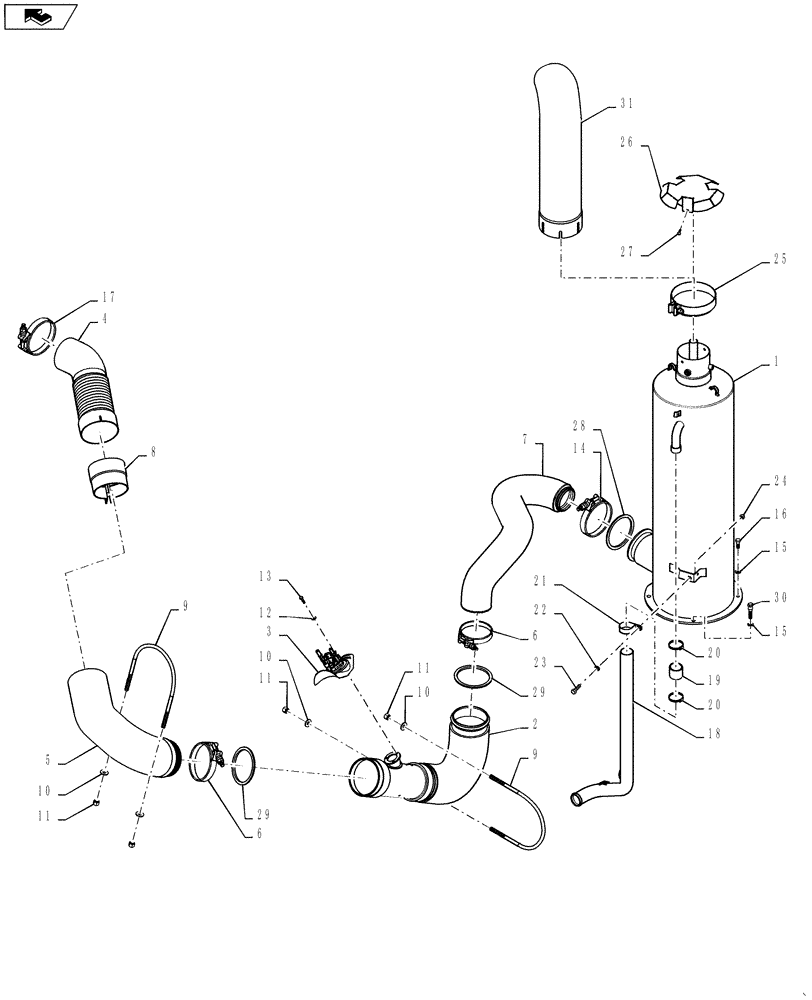

Запчасти Case IH STEIGER 350 (10.254.01[01]) - EXHAUST SYSTEM - SCR - STEIGER 350 - RC (10) - ENGINE

1

84366815

MUFFLER

SCR 28L Substrate Volume

1шт.

2

84412504

TUBE

DoserAssembly

1шт.

3

84247021

MODULE,Dosing Injector

DNOX2 Urea Dosing

1шт.

4

84481846

TUBE

Assembly

1шт.

5

84481850

TUBE

Turbo To Doser

1шт.

6

84356331

CLAMP,118mm OD x 26mm W

2шт.

7

84288088

EXHAUST SYSTEM PIPE,101.60 - 127.00 mm OD x 629, 518 mm L

Doser To SCR Exhaust

1шт.

8

90-8319T1

CLAMP

4.08" ID

1шт.

9

84354957

U-BOLT

Exhaust Support

2шт.

10

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

11

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

13

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

3шт.

14

84469765

CLAMP,Exhaust; 5"

5 In.

1шт.

15

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

17

A170807

CLAMP,102mm ID

T-Bolt Turbo

1шт.

18

84292726

AIR INTAKE TUBE,706.70, 120.80 mm L

Aspiration

1шт.

19

84157240

HOSE,50.80 mm ID x 65.00 mm, SAE 30R7, SAE J30

Jumper

1шт.

20

86625019

HOSE CLAMP,44mm - 67mm

2шт.

21

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

Insulated 50.8 MM 3/8 IN bolt

1шт.

22

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

23

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

24

43362

NUT,M8 x 1.25, Cl 10

1шт.

25

87430634

CLAMP,159.5mm ID

Muffler/Elbow

1шт.

26

84331669

INTRODUCTION CAP

Shipping

1шт.

27

86639138

SELF-TAP SCREW,HWH, M4.8 x 1.6 x 13mm

3шт.

28

84349224

GASKET

5 IN Exhaust

1шт.

29

84349222

GASKET,1.3mm Thk

4 IN Exhaust

2шт.

30

84364685

SPECIAL BOLT

Break

1шт.

31

84361793

ELBOW

Ejector Stack Assembly

1шт.
