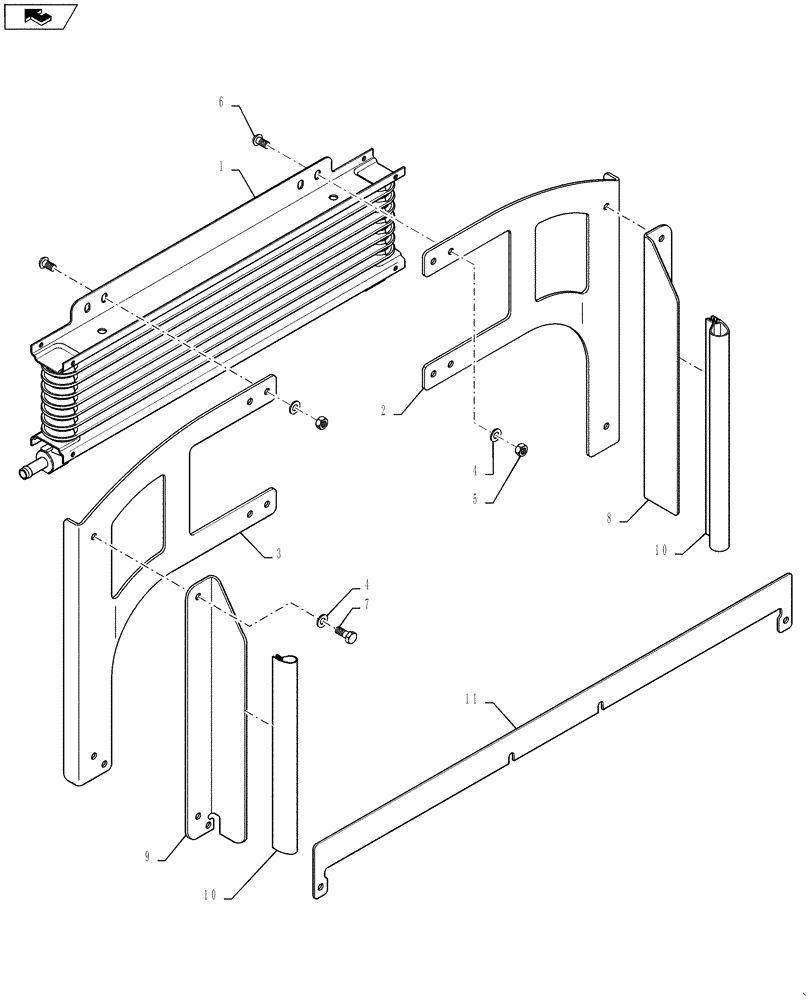

Запчасти Case IH STEIGER 350 (10.214.02) - FUEL COOLER - STEIGER 350 (10) - ENGINE

1

84392652

FUEL COOLER

1шт.

2

84394204

BRACKET

Fuel Cooler Support LH

1шт.

3

84394203

BRACKET

Fuel cooler Support RH

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

6

87360874

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 8.8

BHCS, M8 x 16

4шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

8

84496856

BRACKET

Left Cooling Shield

1шт.

9

84496857

BRACKET

Right Cooling Shield

1шт.

10

84541472

SEAL

Bulb - Order Bulk P/N 87350512 - Cut to Length

2шт.

11

84496858

BRACKET

Center Cooling Shield

1шт.
