Запчасти Case IH STEIGER 350 (55.912.01) - AUTO GUIDANCE - HARNESSES AND SENSORS (55) - ELECTRICAL SYSTEMS

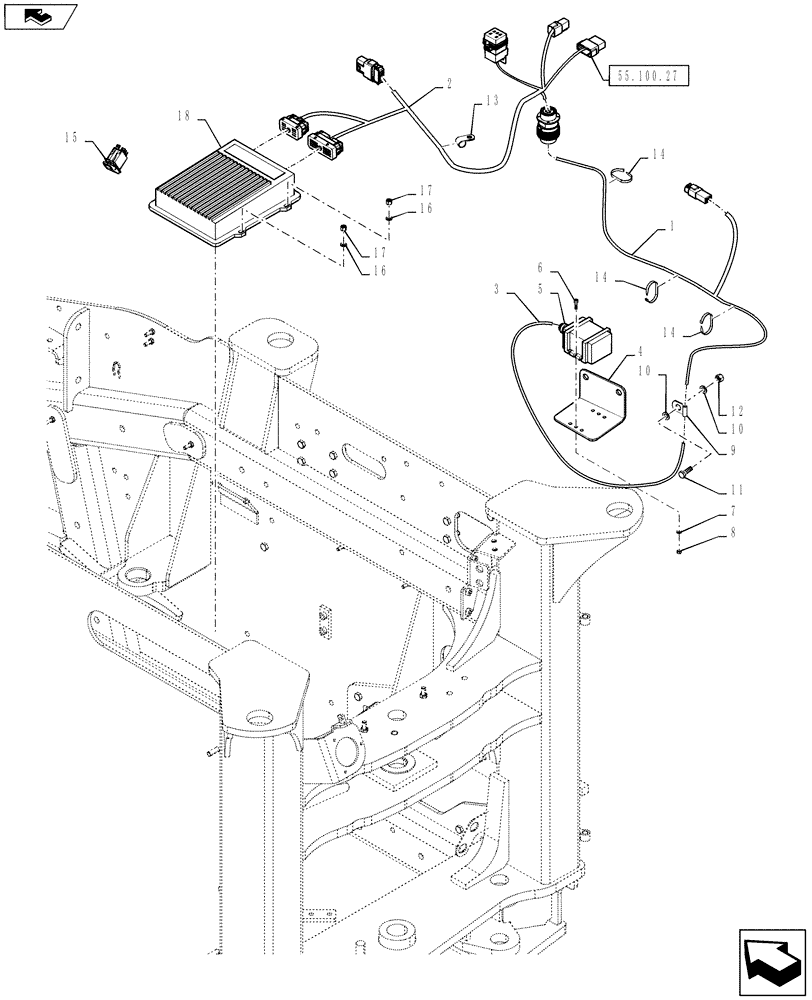

Схема запчастей Case IH STEIGER 350 - (55.912.01) - AUTO GUIDANCE - HARNESSES AND SENSORS (55) - ELECTRICAL SYSTEMS
5
10
15
11
14
16
14
6
55.100.27
16
13
17
18
14
17
2
4
8
7
3
12
10
9
1
home

Артикул

Название

Примечание

Количество

1

84198788

HARNESS

Ag Chassis

1шт.

2

84256846

HARNESS

Auto Guidance/ISO Cab

1шт.

3

87743200

HARNESS

Jumper, 24 Autosense

1шт.

4

84209365

BRACKET

Autoguidance Sensor

1шт.

5

87743199

MODULE

Autoguide Steering Sensor

1шт.

6

864-4016

HEX SOC SCREW,M4 x 16mm, Cl 8.8

6шт.

7

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.

8

832-46404

NUT,M4 x .7, Cl 8

6шт.

9

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

614-5025

BOLT,Hex, M5 x 0.8 x 25mm, Cl 8.8, Full Thd

1шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

13

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

14

435437A1

CABLE TIE,3/16" x 7 1/4"

7шт.

15

87711789

AUTO GUIDANCE DISENG

Roading

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Years: -01-JUN-12

4шт.

17

832-10406

NUT,M6 x 1, Cl 8

, Years: -01-JUN-12

4шт.

17

825-5146

SERRATED NUT,M6, Flg Ser

, Start Year: 01-JUN-12

4шт.

18

87518983

CONTROLLER

Autoguidance Navigation Controller

1шт.

18

87518983R

REMAN ELECT CONTROL

Autoguidance Navigation Controller

1шт.

18

87518983C

CORE-ELECTRONIC CONT

Return Number

1шт.

Выбрано товаров: 21
