(55.911.03) - GPS RECEIVER - HARNESSES AND MOUNTING BRACKET

Запчасти Case IH STEIGER 350 (55.911.03) - GPS RECEIVER - HARNESSES AND MOUNTING BRACKET (55) - ELECTRICAL SYSTEMS

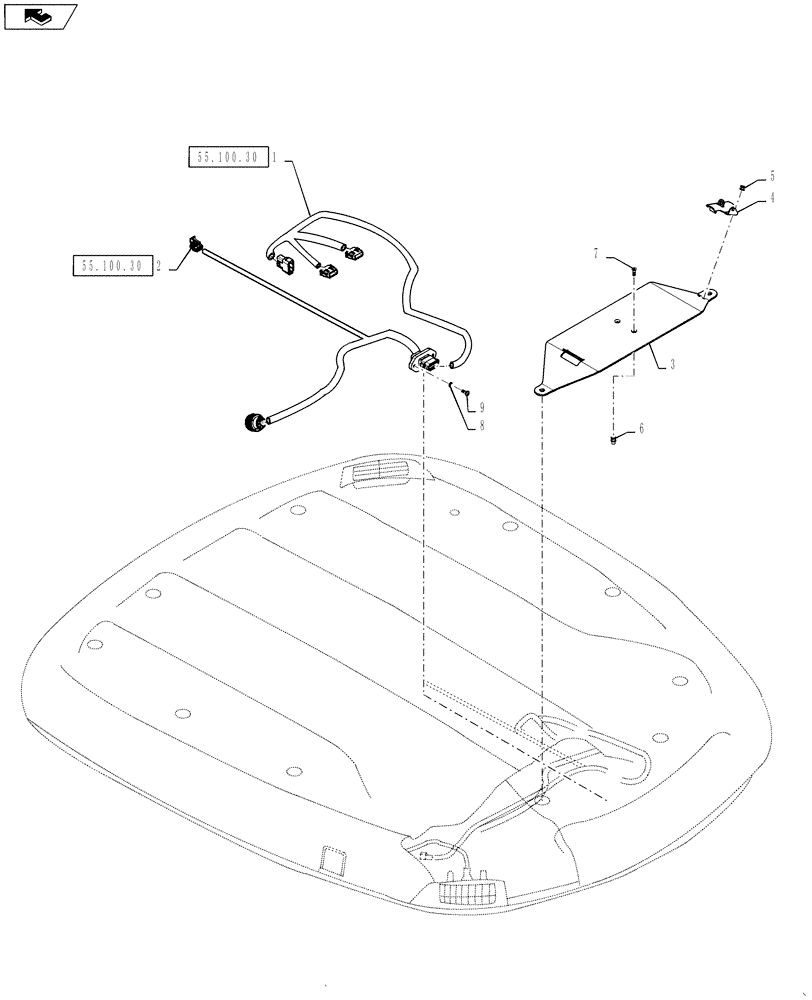

Схема запчастей Case IH STEIGER 350 - (55.911.03) - GPS RECEIVER - HARNESSES AND MOUNTING BRACKET (55) - ELECTRICAL SYSTEMS
55.100.30
3
2
8
55.100.30
home
7
9
4
1
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84258905

HARNESS

GPS Antenna, Roof

1шт.

2

84258907

HARNESS

GPS Antenna, Sub-Roof

1шт.

3

84416197

BRACKET

Autoguidance Roof Mounting

1шт.

4

87308870

LATCH

Under-Center W/ Padlock Hasp

1шт.

5

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

2шт.

6

451165A1

THREADED INSERT

1шт.

7

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

1шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

2шт.
