Запчасти Case IH STEIGER 350 (55.518.02) - WINDSHIELD WASHER INSTALLATION (55) - ELECTRICAL SYSTEMS

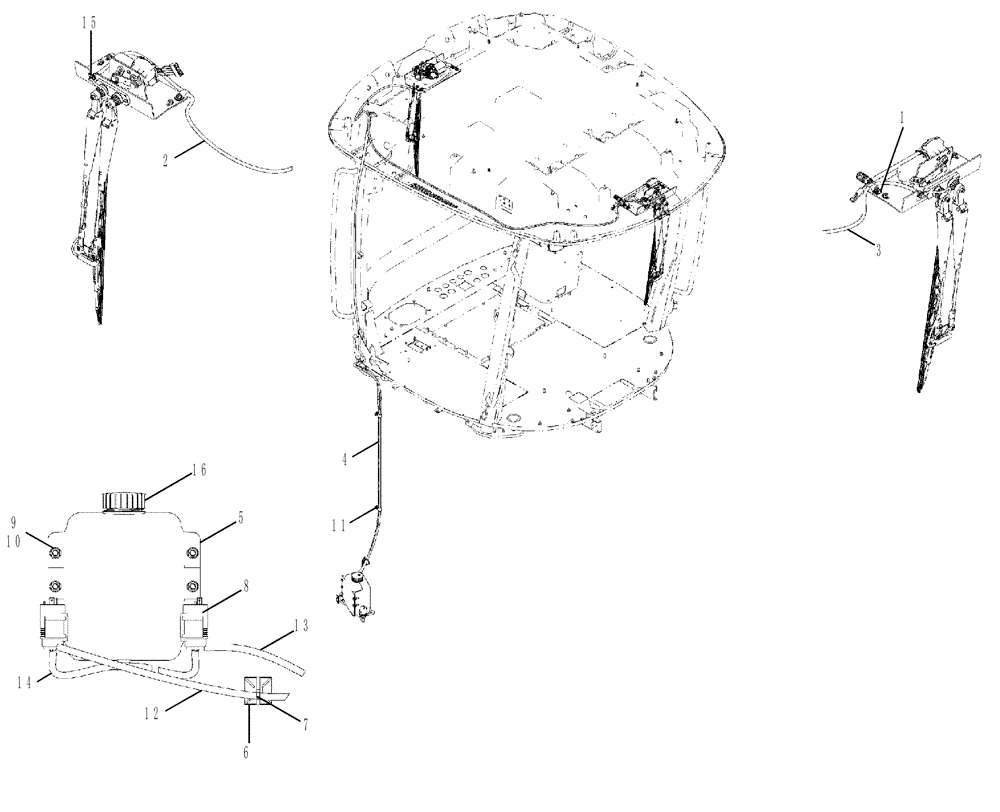

Схема запчастей Case IH STEIGER 350 - (55.518.02) - WINDSHIELD WASHER INSTALLATION (55) - ELECTRICAL SYSTEMS
8
1
11
3
10
5
15
14
7
2
6
13
12
9
16
4

Артикул

Название

Примечание

Количество

1

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Insulated Double

2шт.

2

31-2370

HOSE,4.7752 mm ID x 3302.00 mm

Bulk Hose, Cut to Lenth: 3302 mm (130 In)

1шт.

3

31-2916

HOSE,4.78 mm ID x 4470.40 mm

Windshield Washer

1шт.

4

84037530

VALVE

2шт.

5

48111787

Incl 16

RESERVOIR, WINDSHIEL

1шт.

6

22-823

MOUNT

Mount

3шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

3шт.

8

47626001

PUMP

Washer

2шт.

9

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

31-2694

HOSE,4.78 mm ID x 1219.20 mm

2шт.

13

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

14

384139A1

HOSE,4.77 mm ID x 6.00 mm

2шт.

15

84369351

ELBOW,90 Degree

Connector Washer Bulkhead

2шт.

16

87439461

CAP

Windshield Washer Reservoir

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

Выбрано товаров: 17
