(55.518.01) - WINDSHIELD WIPER - ASSY FRONT AND REAR

Запчасти Case IH STEIGER 350 (55.518.01) - WINDSHIELD WIPER - ASSY FRONT AND REAR (55) - ELECTRICAL SYSTEMS

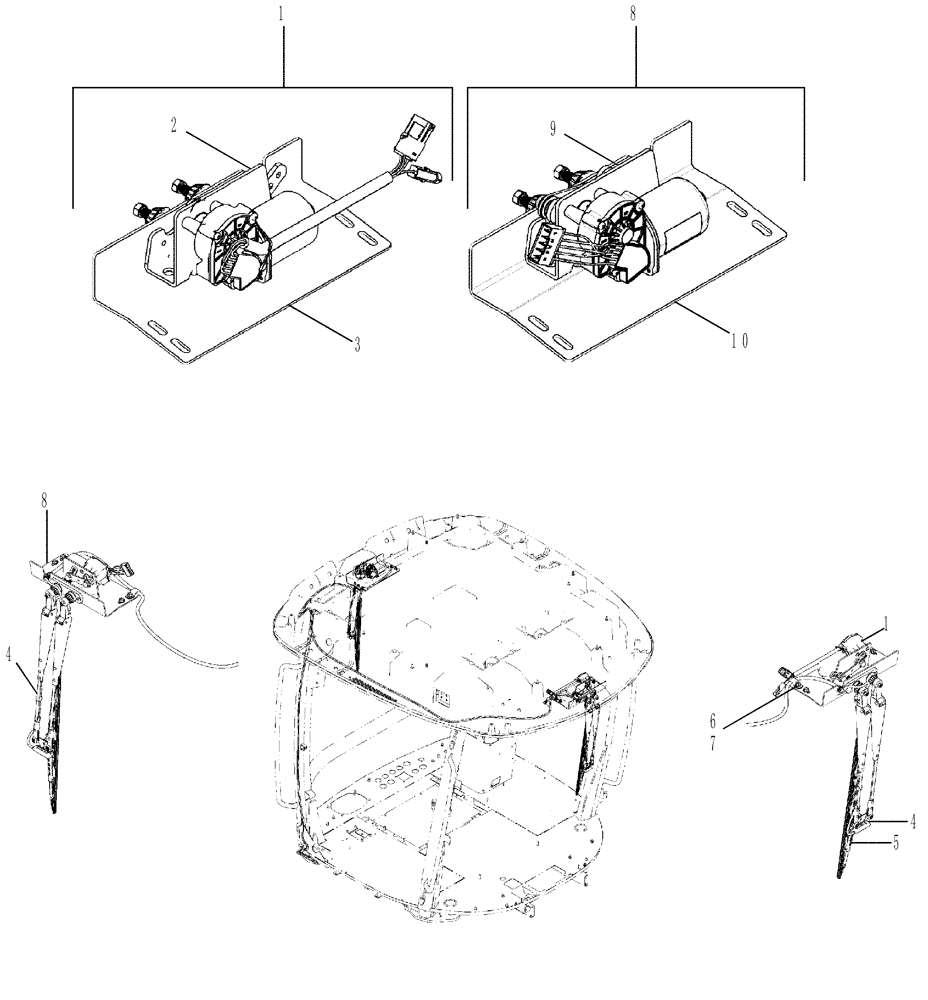

Схема запчастей Case IH STEIGER 350 - (55.518.01) - WINDSHIELD WIPER - ASSY FRONT AND REAR (55) - ELECTRICAL SYSTEMS
3
1
8
9
6
2
7
4
10
4
5
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84308841

WIPER MOTOR

Front Roof - Incl 2 - 3

1шт.

1

84419892

WIPER MOTOR

Front Roof - Europe ONLY

1шт.

2

84308843

WIPER MOTOR

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET, Wiper Mount

1шт.

4

84211824

WIPER ARM,Dual, 500mm L

20 IN

2шт.

4

84419895

WIPER ARM

22 IN - Europe ONLY

2шт.

5

84211825

WIPER BLADE

22 IN

2шт.

6

892-11008

LOCK WASHER,8mm ID

8шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

12шт.

8

84308846

WIPER MOTOR,12V

Rear Roof - Incl 9 - 10

1шт.

9

84308847

WIPER MOTOR

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET, Wiper Mount

1шт.
