(55.514.01) - CAB LIGHTING - CAB ROOF, EXTERIOR

Запчасти Case IH STEIGER 350 (55.514.01) - CAB LIGHTING - CAB ROOF, EXTERIOR (55) - ELECTRICAL SYSTEMS

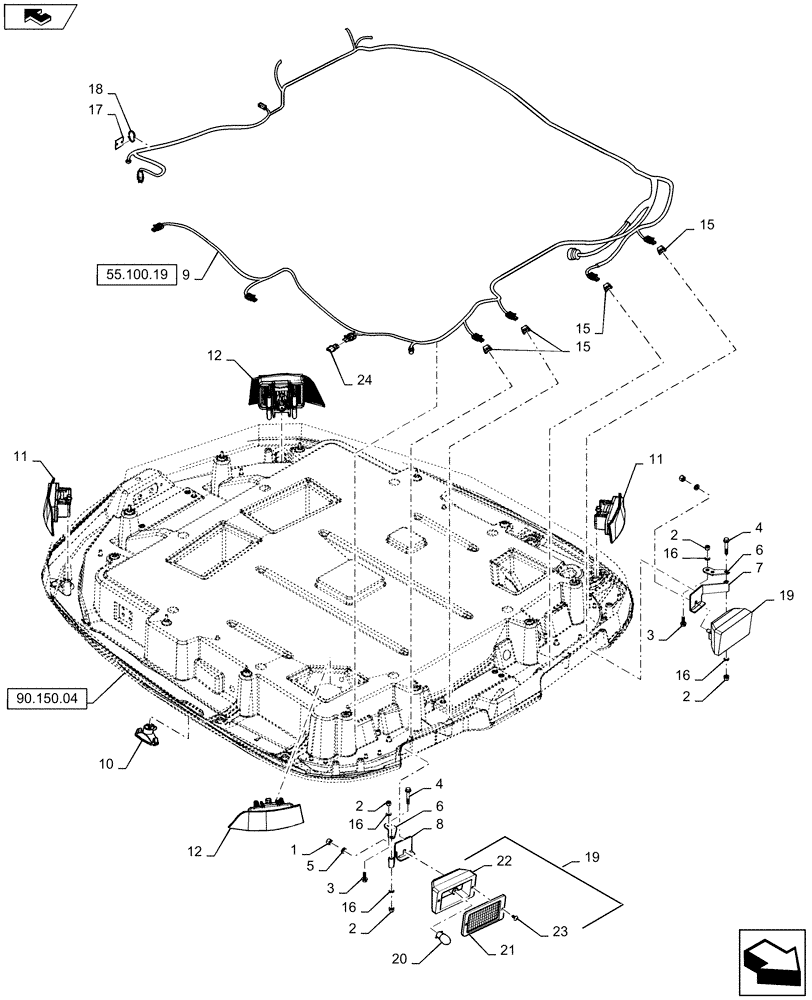

Схема запчастей Case IH STEIGER 350 - (55.514.01) - CAB LIGHTING - CAB ROOF, EXTERIOR (55) - ELECTRICAL SYSTEMS
2
6
90.150.04
12
3
21
11
55.100.19
7
2
6
16
24
home
11
4
19
15
1
16
15
15
19
22
12
16
9
20
18
4
8
17
23
2
16
5
3
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

2

832-10408

NUT,M8 x 1.25, Cl 8.8

24шт.

3

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

8шт.

4

844-8050

BOLT,M8 x 1.25 x 50mm, Cl 8.8

4шт.

5

892-11010

LOCK WASHER,M10

4шт.

6

84230997

BRACKET, SUPPORTING

Work Light

4шт.

7

84231006

BRACKET, SUPPORTING

Rear RH Work Light

2шт.

8

84231001

BRACKET, SUPPORTING

Rear LH Work Light

2шт.

9

84316433

HARNESS

Cab Roof

1шт.

10

87301963

CEILING LAMP,12V

Puddle, Inc. 13 - 14

1шт.

11

87301972

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

SAE, SMV Light, Front LH, Rear RH, Inc. 13 - 14

2шт.

12

87301973

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

SAE, SMV Light, Front RH, Rear LH, Inc. 13 - 14

2шт.

13

87304554

HOLDER

Bulb (Not Shown)

1шт.

14

14149590

BULB,12V, 10W

R10W 12V SCC (Not Shown)

1шт.

15

182049A1

GROMMET

Rubber

4шт.

16

355532A1

WASHER

Nylon

8шт.

17

435436A1

RUBBER MOUNTING

Adhesive Backed

9шт.

18

435437A1

CABLE TIE,3/16" x 7 1/4"

9шт.

19

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

80 X 30 Halogen 55W, Inc. 20 - 24

4шт.

20

1312210C2

BULB,Halogen H3, 12V, 55W

12V 55W

1шт.

21

276498A1

LENS

/Reflector

1шт.

22

1964806C1

BEZEL

Flood Lamp

1шт.

23

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

24

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.
