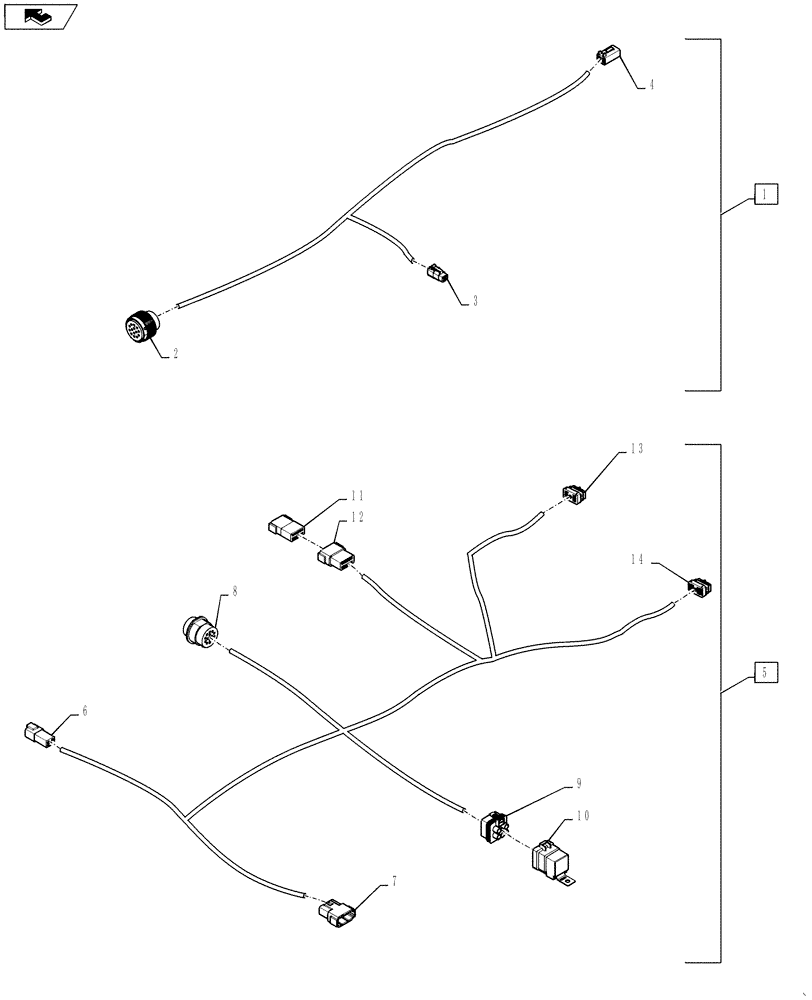

Запчасти Case IH STEIGER 350 (55.510.05) - HARNESS - AUTO GUIDANCE, ISO CAB (55) - ELECTRICAL SYSTEMS

1

84198788

HARNESS

AG Chassis with Auto Guidance - Incl 2 - 4

1шт.

2

84178654

ELEC CONNECTOR

Elec. Connector, Auto Guidance to Cab, 14 Pin

1шт.

3

277904A1

ELEC CONNECTOR,Female, 4 Pin

To Steering Sensor, 4 Pin

1шт.

4

87694153

CONTACT HOUSING,Female, 4 Cavities

To Steering Valve, 4 Pin

1шт.

5

84256846

HARNESS

Auto Guidance Cab - Incl 6 - 14

1шт.

6

280453A1

ELEC CONNECTOR,Male, 6 Pin

To Antenna, 6 Pin

1шт.

7

223686A1

CONNECTOR, ELEC

To Main Interface, 12 Pin

1шт.

8

84178657

ELEC CONNECTOR

Elec. connector, To Autoguidance Chassis, 14 Pin

1шт.

9

297910A1

ELEC CONNECTOR,Female, 5 Pin

To Relay, 5 Pin

1шт.

10

293256A2

RELAY,12V

1шт.

11

223671A1

CONTACT HOUSING,Female, 12 Pin

Diagnostic

1шт.

12

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

Diagnostic, 12 Pin

1шт.

13

244615A1

CONNECTOR, ELEC

Auto Guidance Controller, 12 Pin

1шт.

14

198459A1

CONNECTOR, ELEC

Auto Guidance Controller, 20 Pin

1шт.
