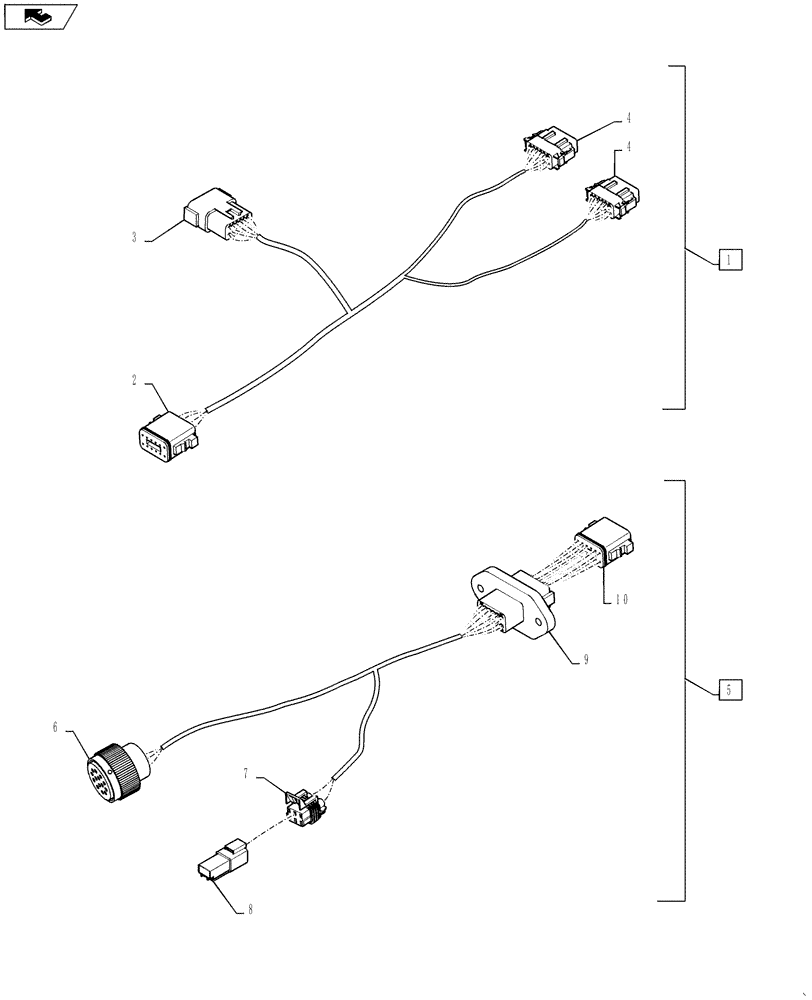

Запчасти Case IH STEIGER 350 (55.510.04[01]) - HARNESS - ANTENNA CAB ROOF (55) - ELECTRICAL SYSTEMS

1

84258905

HARNESS

Harness, Antenna Cab Roof - Incl 2 - 4

1шт.

2

225389C1

CONNECTOR, ELEC

12 Pin - To Antenna Sub Roof Harness

1шт.

3

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

12 Pin - RTK Raio Antenna

1шт.

4

223671A1

CONTACT HOUSING,Female, 12 Pin

12 Pin - GPS Antenna Port

3шт.

5

84258907

HARNESS

Harness, Antenna Sub Roof - Incl 6 - 10

1шт.

6

84178654

ELEC CONNECTOR

Connector, 14 Pin

1шт.

7

256348A1

ELEC CONNECTOR,Female, 6 Pin

6 Pin - To Antenna Inside Cab Harness

1шт.

8

87601142

ELEC CONNECTOR,Female, 6 Cavities

6 Pin

1шт.

9

NSS

NOT SOLD SEPARAT

12 Pin. (C442F) DT04-12PA-LE01 - To Antenna Cab Roof Harness

1шт.

10

225389C1

CONNECTOR, ELEC

12 Pin - To Antenna Cab Roof Harness

1шт.
