Запчасти Case IH STEIGER 350 (55.510.01[02]) - CAB - RIGHT OVERHEAD CONSOLE, SWITCHES, AND RADIO (55) - ELECTRICAL SYSTEMS

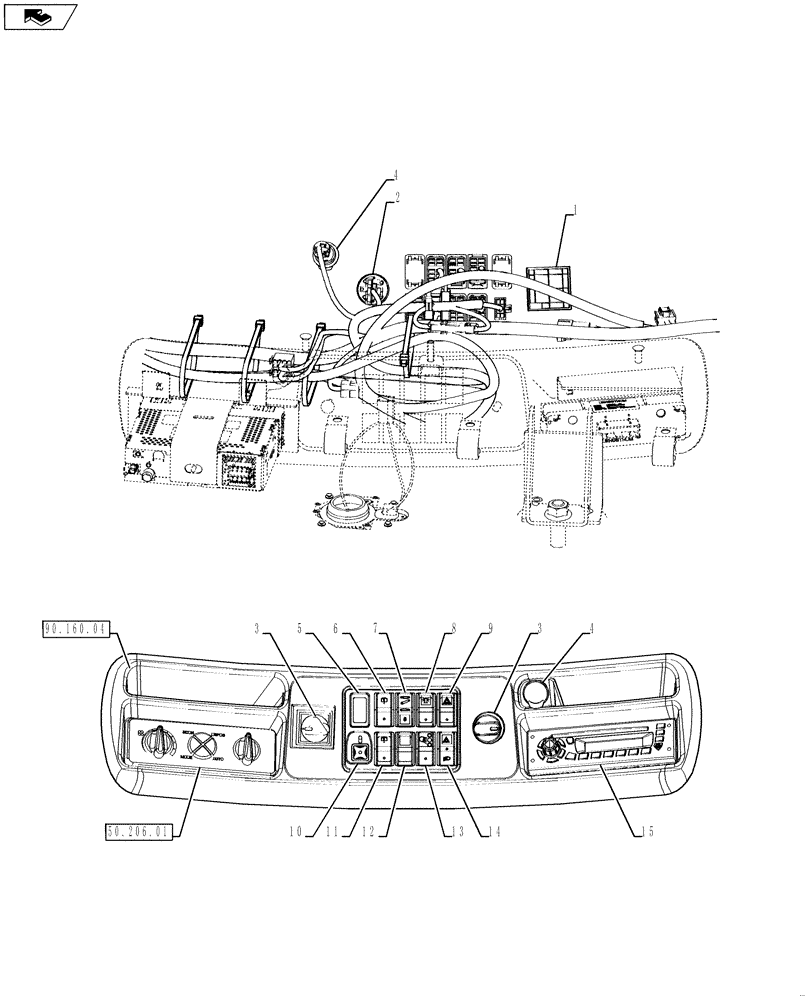

Схема запчастей Case IH STEIGER 350 - (55.510.01[02]) - CAB - RIGHT OVERHEAD CONSOLE, SWITCHES, AND RADIO (55) - ELECTRICAL SYSTEMS
5
14
1
9
3
10
8
13
90.160.04
7
50.206.01
4
4
11
3
6
12
15
2
home

Артикул

Название

Примечание

Количество

1

357662A1

WINDSHIELD WIPER SWI

Front, Rotary, Intermittant

1шт.

2

177250A1

LIGHT SWITCH

Rotory, Work Lights

1шт.

3

86729670

KNOB

Rotary Switch

2шт.

4

388813A1

OUTLET

Power

1шт.

5

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

1шт.

6

86989939

WINDSHIELD WIPER SWI

Rear

1шт.

7

87489752

SWITCH

EHR/Hitch Enable

1шт.

8

87414325

SWITCH

Beacon Lights, If Equipped

1шт.

9

86989962

FLASHER SWITCH

Hazard Lights, Europe

1шт.

10

82037339

SWITCH ASSY

If Equipped

1шт.

11

86989939

WINDSHIELD WIPER SWI

Front Lower, If Equipped

1шт.

12

87711789

AUTO GUIDANCE DISENG

Roading, If Equipped

1шт.

13

87565185

SWITCH

Center HID

1шт.

14

87442098

LIGHT SWITCH

Road/Field/Hazard, North America

1шт.

14

87442099

LIGHT SWITCH

Road/Field/Hazard, Europe / Homologation (Not Shown)

1шт.

15

87714993

RADIO

AM/FM/WB With Aux Input, If Equipped

1шт.

15

87714994

RADIO

AM/FM/WB/CD With Aux Input, If Equipped

1шт.

Выбрано товаров: 17
