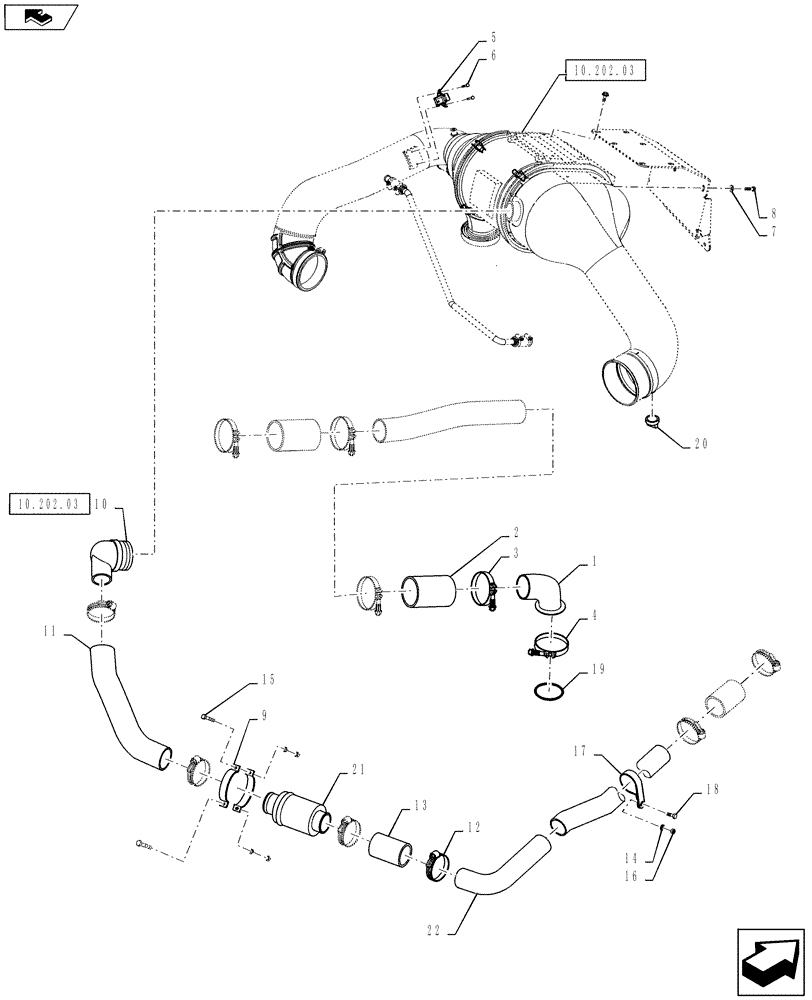

Запчасти Case IH STEIGER 350 (10.202.02[02]) - AIR CLEANER - AIR INTAKE PARTS - STEIGER 400-450 (10) - ENGINE

1

84353354

ELBOW

CAC

1шт.

2

87340760

INTAKE AIR HOSE,88.90 mm ID x 110.00

2шт.

3

47616394

CLAMP,83mm - 105mm, Worm Gear

8шт.

4

84076899

CLAMP

1шт.

5

87482355

SENSOR

Temp. / Humidity Sensor

1шт.

6

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

M6 x 12mm

2шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

11шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

14шт.

9

87300581

CLAMP

Valve

1шт.

10

NSS

NOT SOLD SEPARAT

90 Degree Elbow, Scavenge Adaptor - Inl w/Air Cleaner Assy.

1шт.

11

84355811

INTAKE AIR HOSE

Aspirator

1шт.

12

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

6шт.

13

84157240

HOSE,50.80 mm ID x 65.00 mm, SAE 30R7, SAE J30

Jumper

2шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

15

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

17

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

18

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

19

47445783

O-RING

1шт.

20

84272402

VALVE

Vacuator

1шт.

21

87443913

VALVE

Check

1шт.

22

84355812

AIR INTAKE TUBE

Aspirator

1шт.
