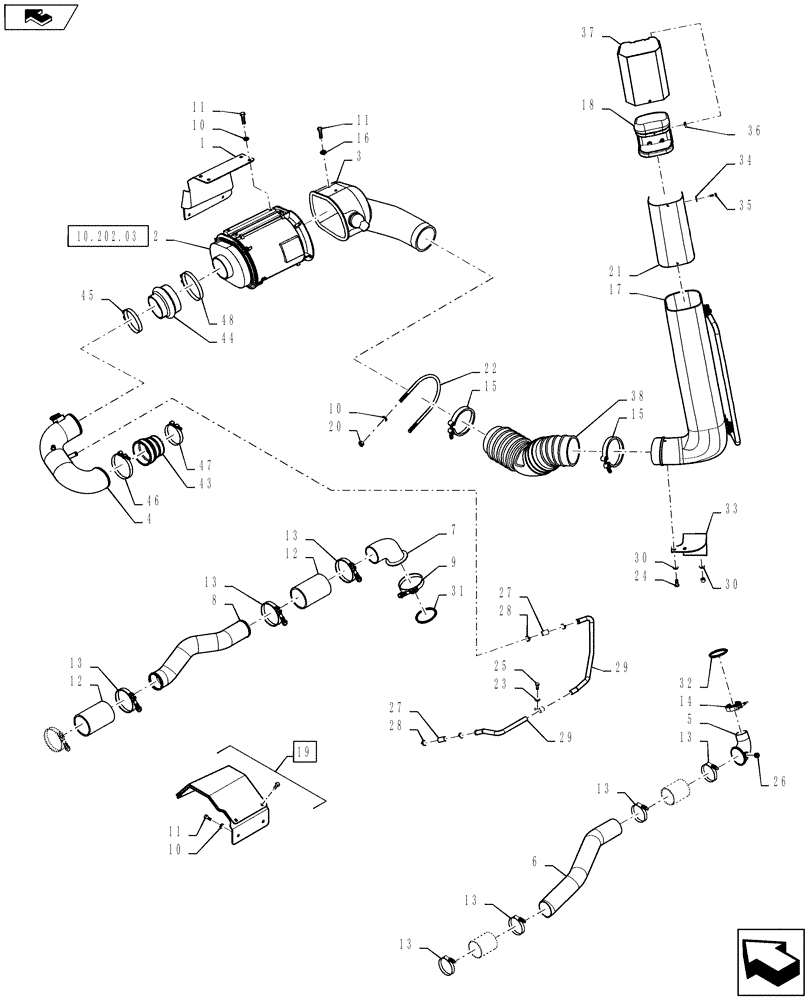

Запчасти Case IH STEIGER 350 (10.202.01[01]) - AIR CLEANER - AIR INTAKE PARTS - STEIGER 350 (10) - ENGINE

1

84355594

BRACKET

1шт.

2

84407844

AIR CLEANER

Assy.

1шт.

3

84355752

AIR INTAKE TUBE

1шт.

4

84263517

AIR INTAKE TUBE

1шт.

5

J918327

ELBOW

Turbo Outlet

1шт.

6

84377970

AIR INTAKE TUBE

Charge Compressor

1шт.

7

84223171

ELBOW

Air Intake Connection

1шт.

8

84377969

AIR INTAKE TUBE

Engine Charge Air

1шт.

9

84223170

CLAMP,125mm ID, V-Band

Turbo Outlet V-Band

1шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

13шт.

11

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

14шт.

12

84174189

INTAKE AIR HOSE

Cold Side

2шт.

13

76086813

CLAMP,3.25" - 4.12", Worm Gear

8шт.

14

J069053

CLAMP,66.54mm ID

1шт.

15

84319920

HOSE CLAMP,146mm - 168mm

T-Bolt

2шт.

16

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

17

84265256

AIR INTAKE TUBE

1шт.

18

84276357

AIR INTAKE TUBE

1шт.

19

84415309

BRACKET

Heat Shield Assy., Incl 10, 11, 39 - 42

1шт.

20

412250

NUT,M8 x 1.25, Cl 8

6шт.

21

84276360

FILTER SCREEN

Air Inlet

1шт.

22

84356764

U-BOLT

1шт.

23

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

15шт.

24

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

10шт.

25

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

1шт.

26

J008465

PLUG

Turbo Outlet Pipe

1шт.

27

87486602

HOSE

Breather to Breather

2шт.

28

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

, Serial Range: -ZDF134450

4шт.

28

87016721

HOSE CLAMP,17.5mm - 31.7mm

, Start Serial: ZDF134451

4шт.

29

84157240

HOSE,50.80 mm ID x 65.00 mm, SAE 30R7, SAE J30

Jumper

2шт.

30

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

31

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

32

J883284

O-RING,0.07" Thk x 2.364" ID, -36

Seal

1шт.

33

86016585

SCREW,Phil Pan Hd, M6 x 20mm, Cl 4.8

M6 x 20 PHD

10шт.

34

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6mm

10шт.

35

86016585

SCREW,Phil Pan Hd, M6 x 20mm, Cl 4.8

M6 x 20 PHD

10шт.

36

76047274

NUT,M6 x 1

10шт.

37

84283226

CAP

Shipping Screen

1шт.

38

84374253

BELLOWS

Row Crop

1шт.

39

84357984

BRACKET

Heat Shield - Lower (Not Shown)

1шт.

40

84357983

BRACKET

Heat shield - Upper (Not Shown)

1шт.

41

832-46408

NUT,M8 x 1.25, Cl 8

(Not Shown)

4шт.

42

87608759

SPACER,9.52mm ID x 12.7mm OD x 7mm L

(Not Shown)

4шт.

43

84426358

AIR INTAKE TUBE,101.6mm ID x 114.3mm L, SAE J200

Turbo Inlet

1шт.

44

84263519

BELLOWS

1шт.

45

84281055

HOSE CLAMP,5.25" - 5.56"

1шт.

46

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

1шт.

47

L127771

CLAMP,107.95mm - 130.18mm

1шт.

48

84319920

HOSE CLAMP,146mm - 168mm

1шт.
