(55.404.11[01]) - HARNESS - BEACON, SINGLE & DUAL

Запчасти Case IH STEIGER 350 (55.404.11[01]) - HARNESS - BEACON, SINGLE & DUAL (55) - ELECTRICAL SYSTEMS

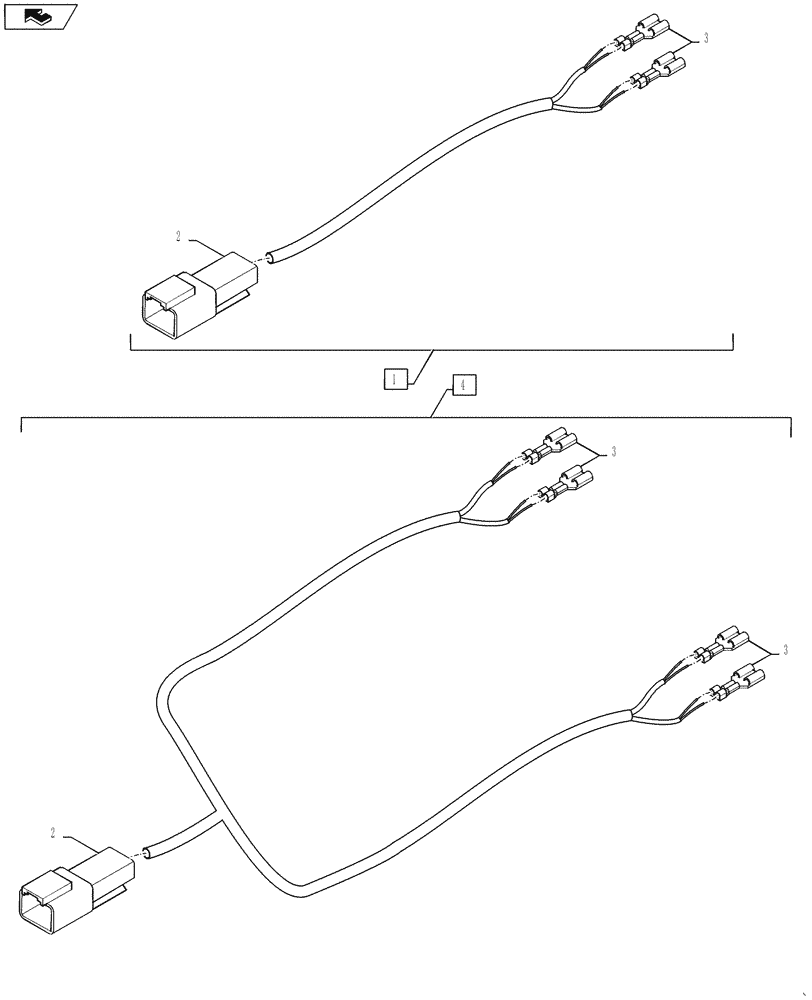

Схема запчастей Case IH STEIGER 350 - (55.404.11[01]) - HARNESS - BEACON, SINGLE & DUAL (55) - ELECTRICAL SYSTEMS
2
3
home
1
3
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84250861

HARNESS

Beacon Light, Single Assy.

1шт.

2

225315C1

ELEC CONNECTOR,Male, 2 Pin

To Cab Roof Harness - 2 Pin

1шт.

3

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Beacon Positive & Ground

2шт.

Qty. of 4 requiered for Dual Beacon Assy.

1шт.

4

84250861

HARNESS

Beacon Light, Dual Assy.

1шт.
