(55.404.07) - HARNESS - REAR MARKER LIGHTS - EURO

Запчасти Case IH STEIGER 350 (55.404.07) - HARNESS - REAR MARKER LIGHTS - EURO (55) - ELECTRICAL SYSTEMS

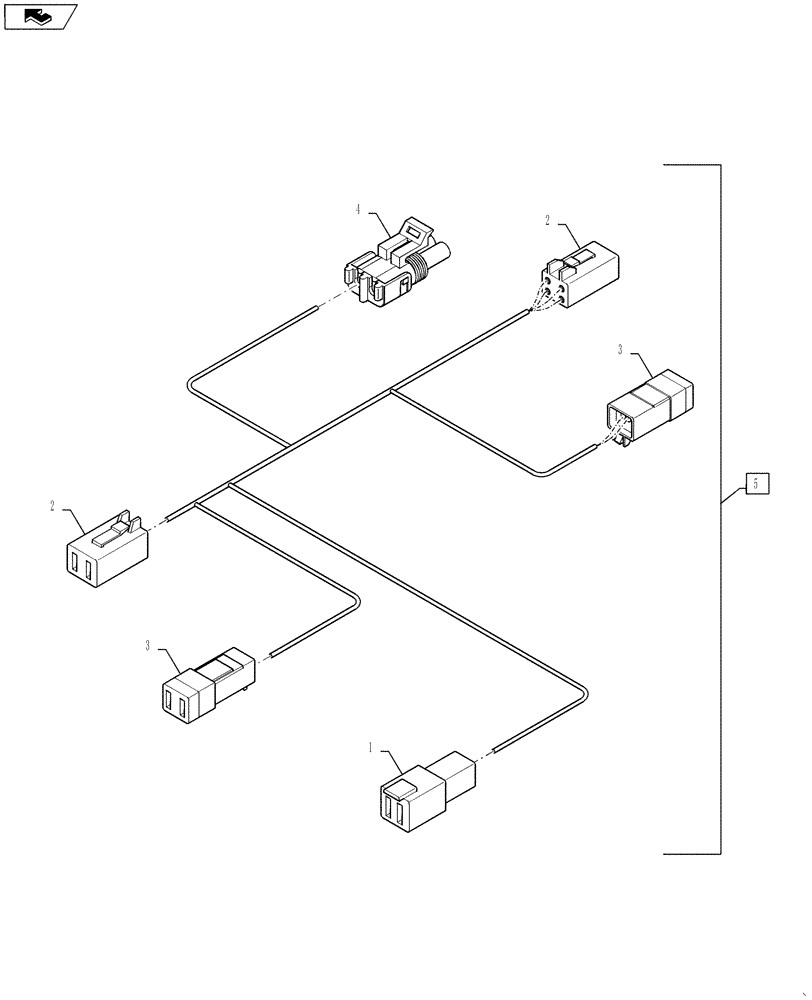

Схема запчастей Case IH STEIGER 350 - (55.404.07) - HARNESS - REAR MARKER LIGHTS - EURO (55) - ELECTRICAL SYSTEMS
5
3
2
3
1
home
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

225350C1

ELEC CONNECTOR,Male, 6 Pin

6 Pin, To Rear Frame Harness

1шт.

2

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4 Pin, Left & Right Marker Lights

2шт.

3

225316C1

ELEC CONNECTOR,Female, 2 Pin

4 Pin, Left & Right Position Lights

2шт.

4

245482C1

ELEC CONNECTOR,2 Pin

License Plate Light

1шт.

5

84374405

WIRE HARNESS

Rear Marker Lights, EURO, Incl 1 - 4

1шт.
