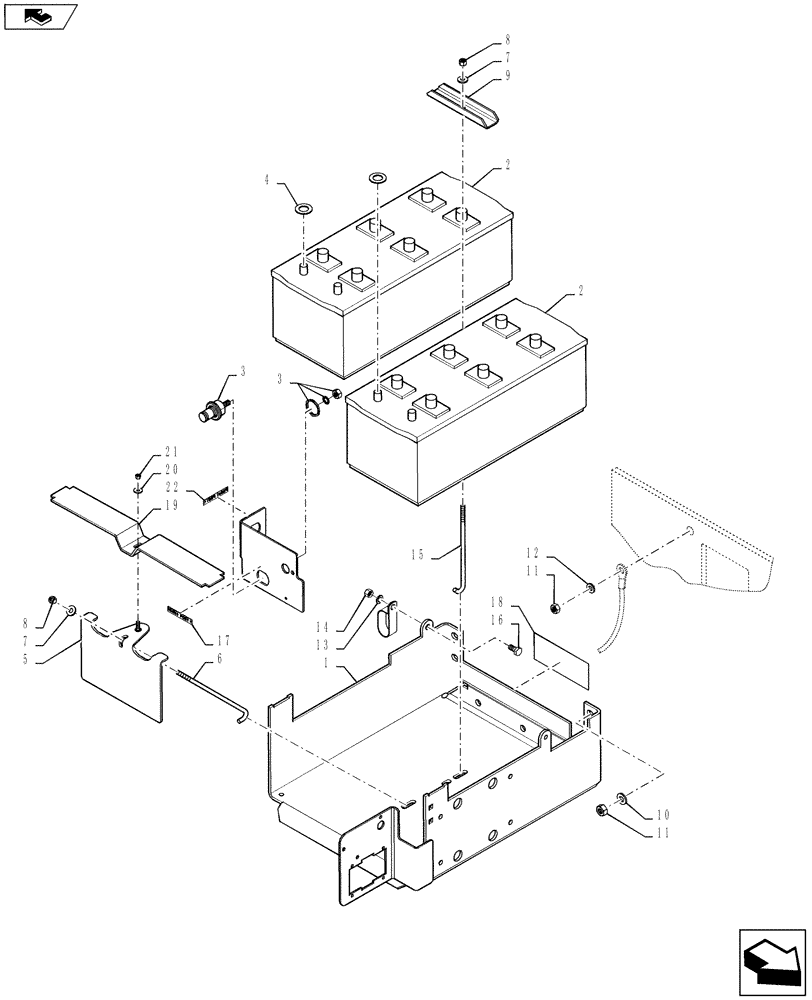

Запчасти Case IH STEIGER 350 (55.302.04[01]) - BATTERY - TRAY & CABLES - 9L ENG. STEIGER 350 (55) - ELECTRICAL SYSTEMS

1

84360205

BATTERY TRAY

Assy.

1шт.

2

BCH4DLTW

WET BATTERY,BCI 4DLT, 12V, 1000CCA

NA

2шт.

2

CCH4DLTW

WET BATTERY,BCI 4DLT, 12V, 1000CCA

Canada

2шт.

3

84258928

TERMINAL CONNECTOR

Jump Start - Negative

1шт.

4

87637103

WASHER

Battery Terminal

2шт.

5

84346930

BRACKET

Battery Hold Down

1шт.

6

365357A1

ROD

Battery Hold Down

1шт.

7

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

8

412250

NUT,M8 x 1.25, Cl 8

3шт.

9

84213124

BRACKET

Battery Hold Down

1шт.

10

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

7шт.

11

337475

NUT,M12, Cl 10

8шт.

12

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

13

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

15

87413678

ROD

Battery Hold Down

1шт.

16

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

1шт.

17

87427317

DECAL

Neg. Post

1шт.

18

87427097

DECAL

Danger Battery

1шт.

19

84315779

BRACKET

Battery Post Shield

1шт.

20

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

21

353308

NUT,M6 x 1.0, Cl 8

1шт.

22

87427096

DECAL

Charging Post

1шт.
