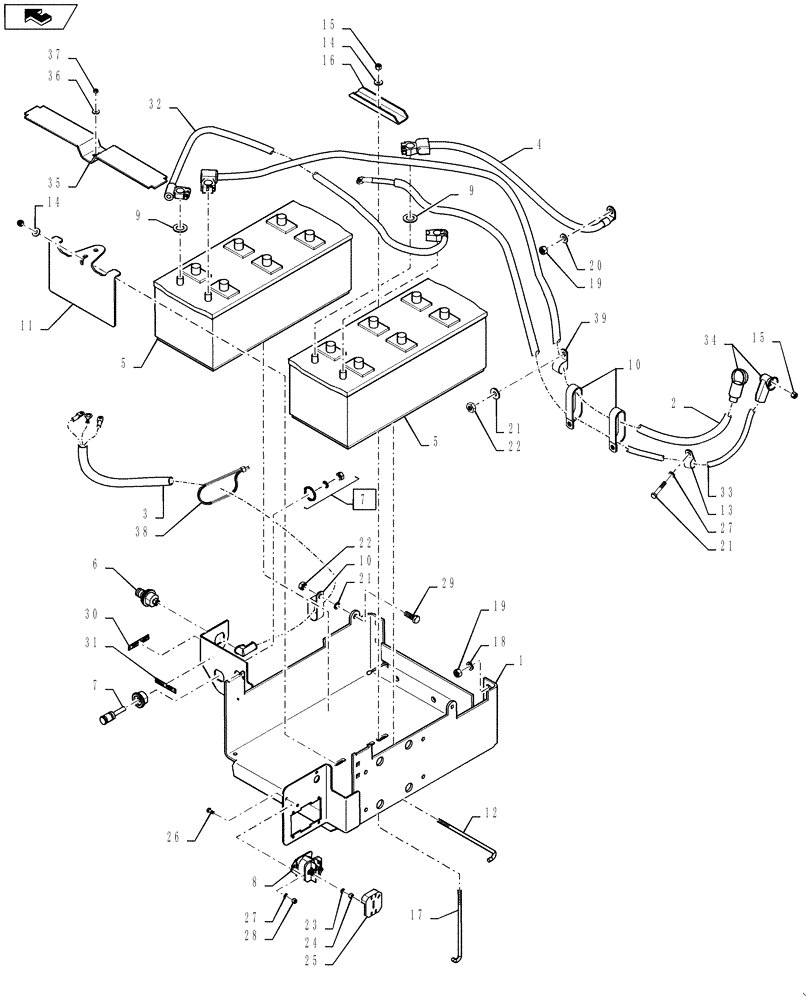

Запчасти Case IH STEIGER 350 (55.302.02[02]) - BATTERY - TRAY & CABLES - NO DISCONNECT, NON- SUSPENDED CAB (55) - ELECTRICAL SYSTEMS

1

84492742

BATTERY TRAY

Tray, Battery Assy.

1шт.

2

84478860

CABLE

13L Starter

1шт.

2

84478854

CABLE

9L Starter

1шт.

3

84151624

CABLE

Cab Power & Ground

1шт.

4

84249433

CABLE

Battery Ground

1шт.

5

87417341

WET BATTERY,BCI 4DLT, 12V, 1000CCA

24V

1шт.

6

1964554C1

TERMINAL

Jump Start Terminal, Positive, Long

2шт.

7

84258928

TERMINAL CONNECTOR

Jump Start Teminal, Negative, Long

1шт.

8

183038A1

SOLENOID

Solenoid Switch with Barrier

1шт.

9

87637103

WASHER

Leaad Post Corrosion

2шт.

10

L111928

CLAMP

1шт.

11

84346930

BRACKET

Battery Hold Down Assy.

1шт.

12

365357A1

ROD

Battery Hold Down

1шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

3шт.

14

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

16

84213124

BRACKET

Battery Hold Down

1шт.

17

87413678

ROD

Battery Hold Down

1шт.

18

892-11012

LOCK WASHER,M12

7шт.

19

829-1412

NUT,M12, Cl 10.9

8шт.

20

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

21

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

24

425-105

NUT,5/16"-18, G5

2шт.

25

178148A1

COVER

Solenoid Starting Switch

1шт.

26

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

28

832-10406

NUT,M6 x 1, Cl 8

2шт.

29

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

30

87427096

DECAL

Charging Post

1шт.

31

87427317

DECAL

Neg (-) Post

1шт.

32

84158325

CABLE

Battery Positive (+) to Jumper Post

1шт.

33

84195187

CABLE

13L Alternator

1шт.

33

84158320

CABLE

9L Alternator

1шт.

34

L126713

BOOT

1шт.

35

84315779

BRACKET

Battery Post Shield

1шт.

36

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

37

832-46406

NUT,M6 x 1, Cl 8

1шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

39

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

2шт.

40

87455597

FUSE,200A

200 Amp (Not Shown)

1шт.
