(55.100.34) - HARNESS - IMPLEMENT DEPTH CONTROL HARNESS

Запчасти Case IH STEIGER 350 (55.100.34) - HARNESS - IMPLEMENT DEPTH CONTROL HARNESS (55) - ELECTRICAL SYSTEMS

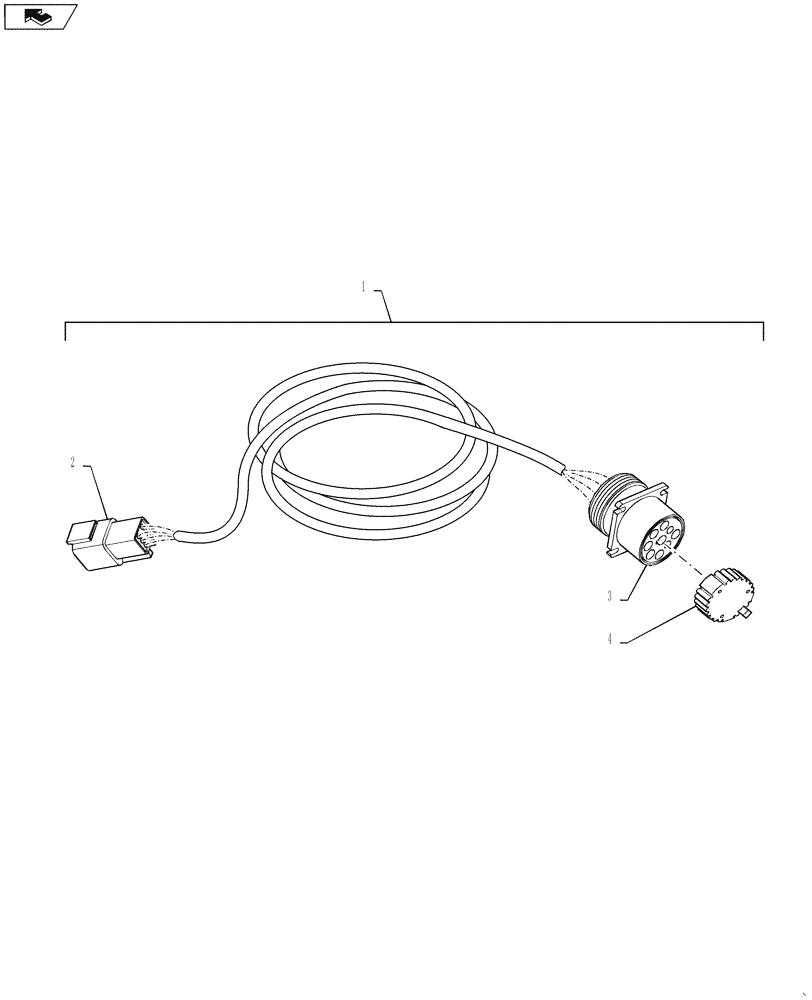

Схема запчастей Case IH STEIGER 350 - (55.100.34) - HARNESS - IMPLEMENT DEPTH CONTROL HARNESS (55) - ELECTRICAL SYSTEMS
home
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84511635

WIRE HARNESS

Implement Depth Control - Incl 2 - 4

1шт.

2

280453A1

ELEC CONNECTOR,Male, 6 Pin

6 Pin, To Main Cab Harness, (C686F)

1шт.

3

87707146

ELEC CONNECTOR

9 Pin, Implement Connector (C682)

1шт.

4

84074633

COVER

Dust - For item #2

1шт.
