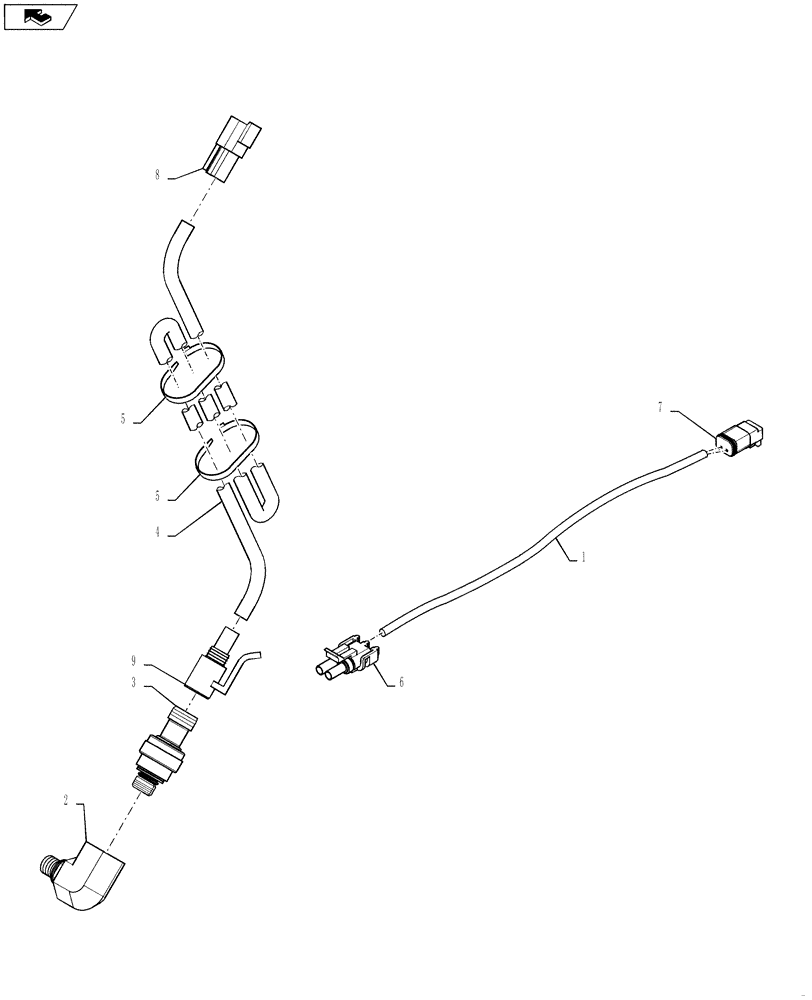

Запчасти Case IH STEIGER 350 (55.100.25) - HARNESS - DIFFERENTIAL LOCK WIRING LAYOUT (55) - ELECTRICAL SYSTEMS

1

84317073

HARNESS

Rear Axle Diff Lock, Incl 6 - 7

1шт.

2

87539795

ELBOW

Adapter, ORB

1шт.

3

375644A1

SENSOR

Pressure, Steering Pressure

1шт.

4

87551744

WIRE HARNESS

Steering Press, Incl 8 - 9

1шт.

5

435437A1

CABLE TIE,3/16" x 7 1/4"

2шт.

6

245482C1

ELEC CONNECTOR,2 Pin

To Rear Frame Harness, C212M

1шт.

7

225316C1

ELEC CONNECTOR,Female, 2 Pin

To Diff Lock Solenoid, C234M

1шт.

8

87428138

ELEC CONNECTOR

Steering Press Sensor

1шт.

9

87418311

ELEC CONNECTOR,Female, 3 Cavities

Elec. Connector, Steering Press Sensor

1шт.
