(55.100.18) - HARNESS - LOWER WIPER KIT

Запчасти Case IH STEIGER 350 (55.100.18) - HARNESS - LOWER WIPER KIT (55) - ELECTRICAL SYSTEMS

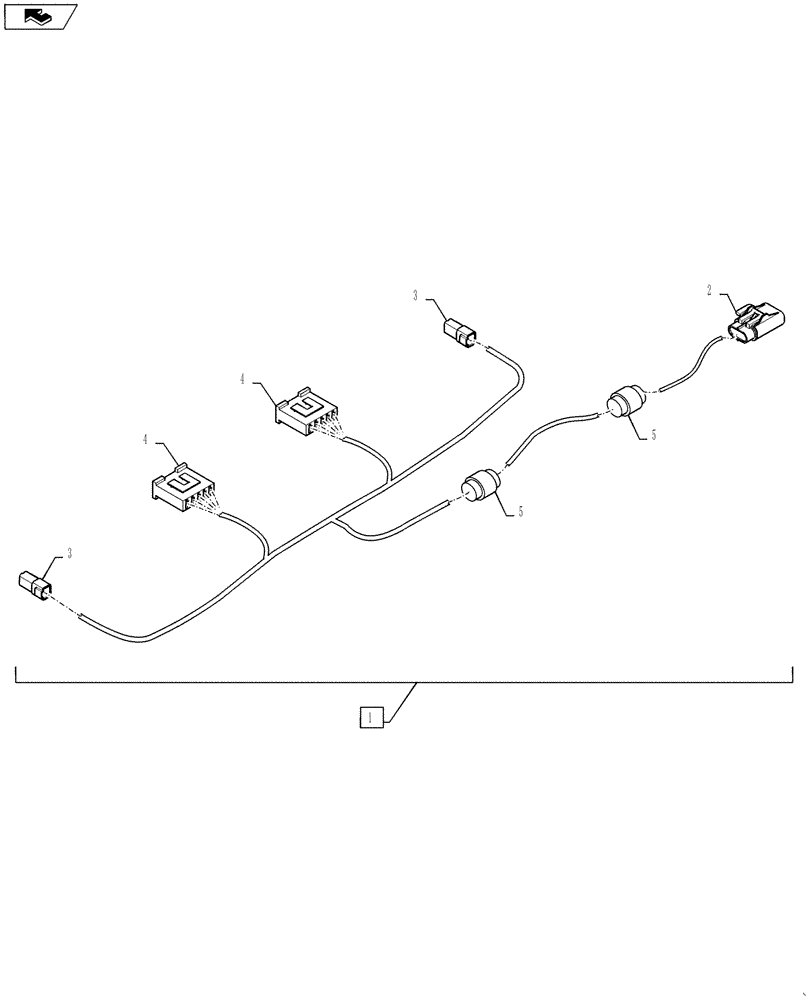

Схема запчастей Case IH STEIGER 350 - (55.100.18) - HARNESS - LOWER WIPER KIT (55) - ELECTRICAL SYSTEMS
4
2
3
1
5
home
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87655037

HARNESS

Lower Wiper Motor Kit - Incl 2 - 4

1шт.

See Figure 88.100.08 for DIA Kit

1шт.

2

87382911

WIRE CONNECTOR,Male, 3 Cavities

To Cab Frame Harness

1шт.

3

631801C1

CONNECTION

Connectipn # 215 / 217

2шт.

4

84177904

ELEC CONNECTOR,Female, 5 Cavities

Lower Wiper Motor - RH / LH

2шт.

5

84177913

DIODE

Diode

2шт.
