(55.100.10) - HARNESS - POWER TAKE OFF

Запчасти Case IH STEIGER 350 (55.100.10) - HARNESS - POWER TAKE OFF (55) - ELECTRICAL SYSTEMS

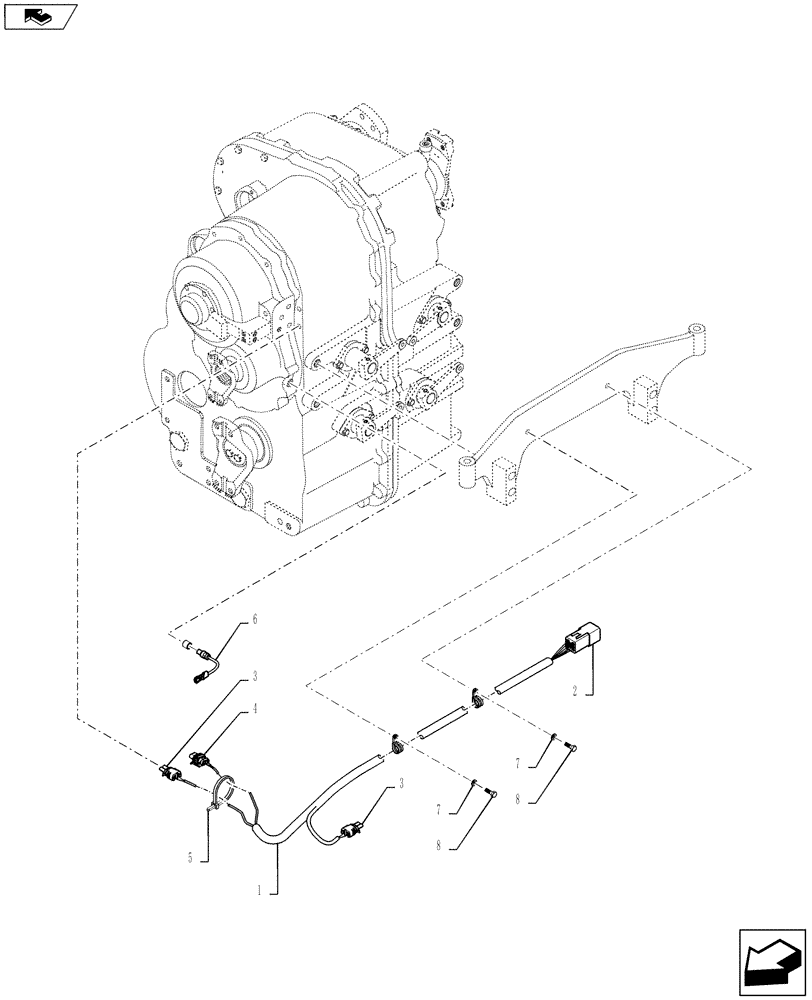

Схема запчастей Case IH STEIGER 350 - (55.100.10) - HARNESS - POWER TAKE OFF (55) - ELECTRICAL SYSTEMS
3
7
8
6
8
home
5
2
3
7
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84311770

HARNESS

Incl 2 - 4

1шт.

2

225350C1

ELEC CONNECTOR,Male, 6 Pin

6 Pin, PTO Bulkhead to Trans. Harness

1шт.

3

245482C1

ELEC CONNECTOR,2 Pin

PTO Shaft Speed, PTO Lube SOL

2шт.

4

371614A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin, PTO SOL

1шт.

5

435437A1

CABLE TIE,3/16" x 7 1/4"

1шт.

6

87449451

SENSOR

Transmission Gear Speed

1шт.

7

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

8

43232

BOLT,Hex, M8 x 16mm, Cl 10.9

M8 X 16

2шт.
