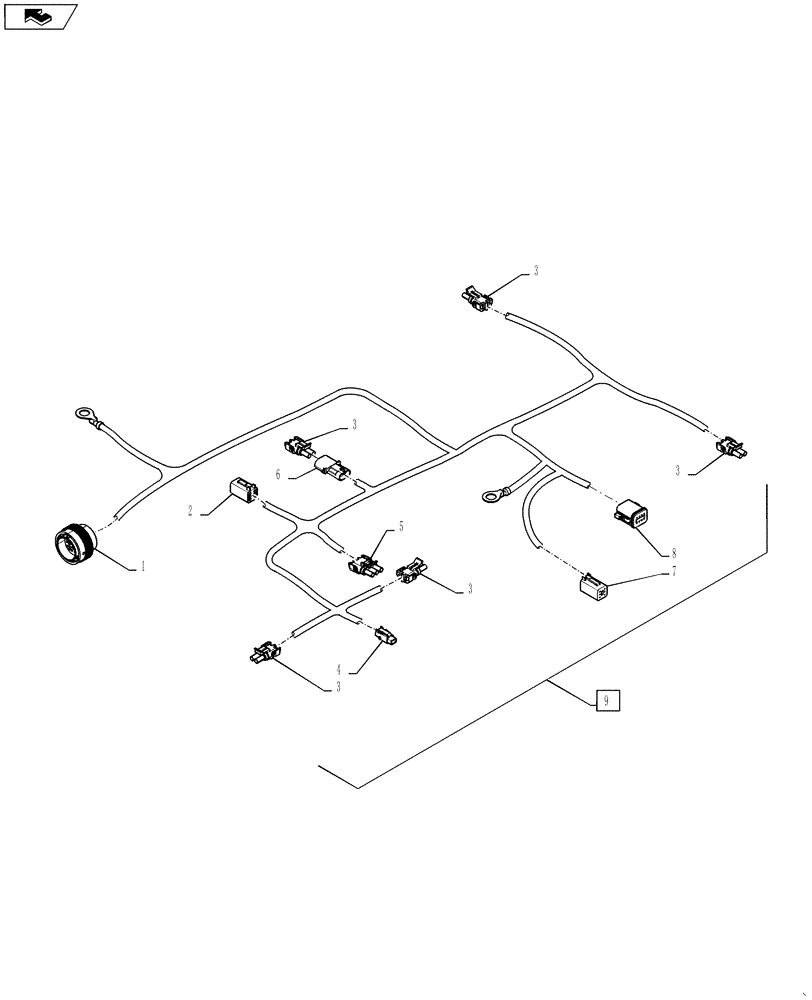

Запчасти Case IH STEIGER 350 (55.100.06[04]) - HARNESS - REAR FRAME WIRING - EURO (55) - ELECTRICAL SYSTEMS

1

87696948

MULTIPOLE CONNECTOR,Male, 29 Pole

Rear Frame Bulkhead (C002M)

1шт.

2

225351C1

ELEC CONNECTOR,Female, 6 Pin

6 Pin, Euro Marker Lamps (C252M)

1шт.

3

245482C1

ELEC CONNECTOR,2 Pin

Field Lamps, Diff lock Solenoid - Fenmale (C212M, C213M, C215M, C217M, C220M)

5шт.

4

222135A1

CONNECTOR, ELEC

2 Pin, Backup Alarm (C219M)

1шт.

5

245484C1

ELEC CONNECTOR,3 Pin

Fuel Sender (C216M)

1шт.

6

245483C1

ELEC CONNECTOR,Male, 2 Pin

2 Pin, Diff Lock Solenoid - Male (C212F)

1шт.

7

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4 Pin, To HER Harness (C222M)

1шт.

8

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

8 Pin, To Euro Trailer Adaptor (C250M)

1шт.

9

84273308

HARNESS

Rear Frame - EURO - Incl 1 - 8

1шт.
