(55.100.05[08]) - HARNESS - HYDRAULIC SUB ASSY - EUROPE ONLY

Запчасти Case IH STEIGER 350 (55.100.05[08]) - HARNESS - HYDRAULIC SUB ASSY - EUROPE ONLY (55) - ELECTRICAL SYSTEMS

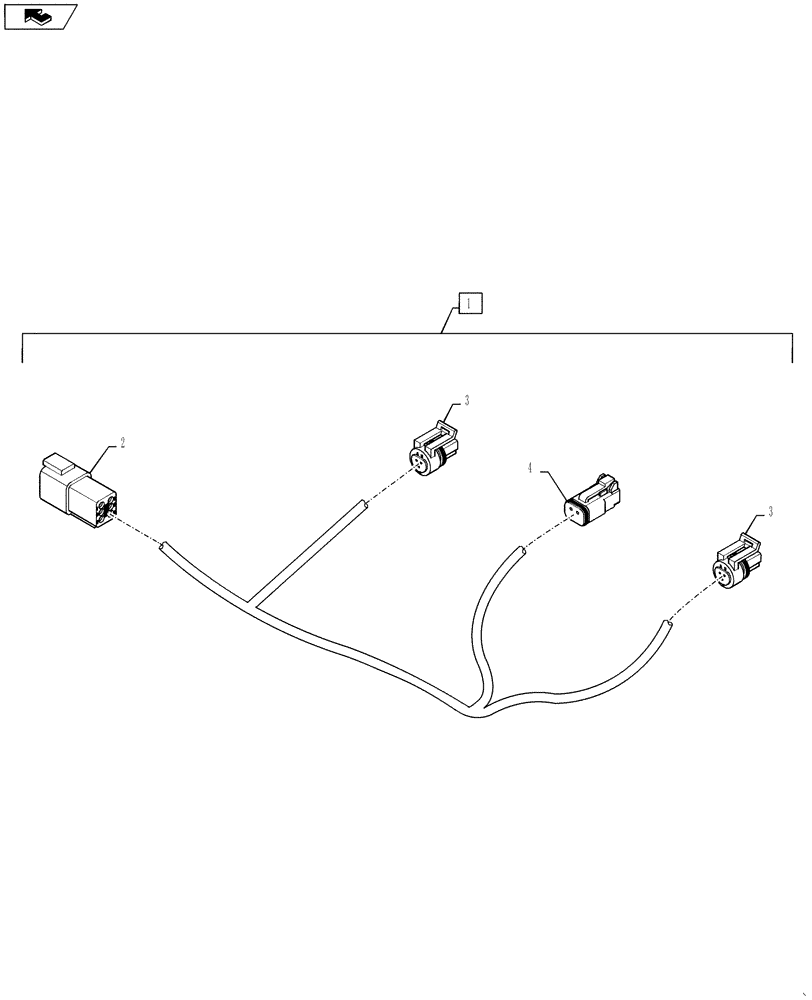

Схема запчастей Case IH STEIGER 350 - (55.100.05[08]) - HARNESS - HYDRAULIC SUB ASSY - EUROPE ONLY (55) - ELECTRICAL SYSTEMS
home
3
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84406520

WIRE HARNESS

Harness, Hydraulic Sub Assy. - EUROPE - Incl 2 - 5

1шт.

2

280453A1

ELEC CONNECTOR,Male, 6 Pin

To Front Frame Harness (C315F)

1шт.

3

198456A1

ELEC CONNECTOR,Female

Primary steering Sys. Pressure Sensor (C316)

2шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

Hydraulic Bypass Solenoid (C317)

1шт.
