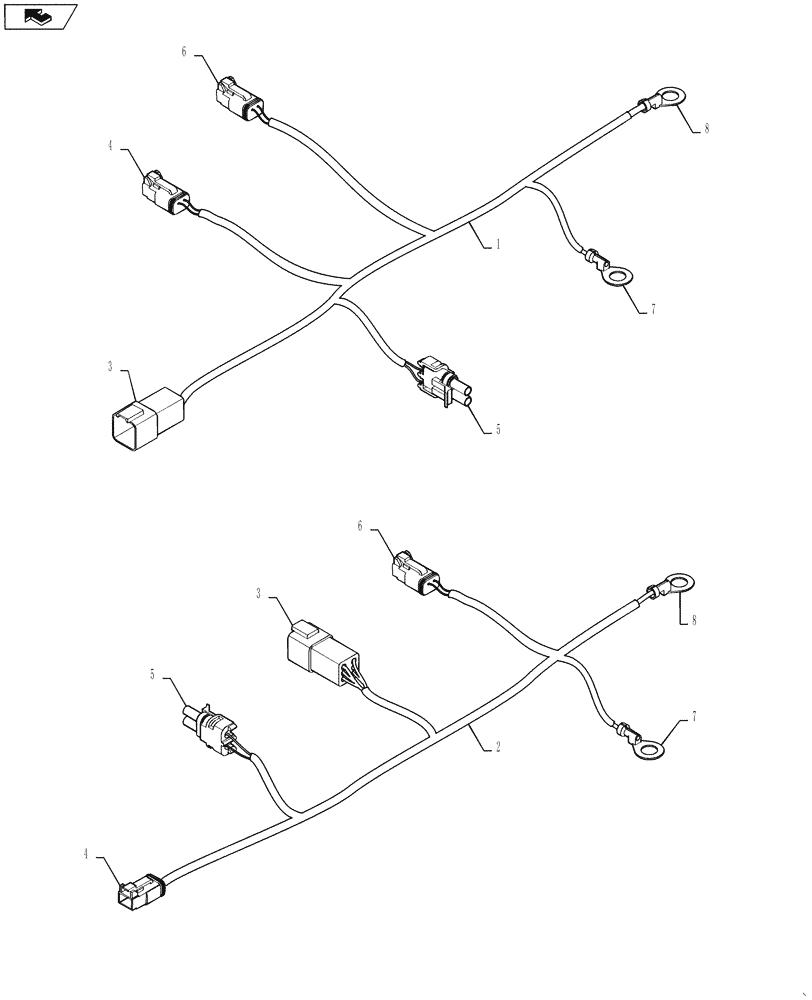

Запчасти Case IH STEIGER 350 (55.100.05[04]) - HARNESS - HYDRAULIC SUB ASSY (55) - ELECTRICAL SYSTEMS

1

84250841

HARNESS

Hydraulic Sub Assembly, Wheeled - Incl 3 - 8

1шт.

2

84250842

HARNESS

Hydraulic Sub Assembly, QuadTrac - Incl 3 - 8

1шт.

3

225350C1

ELEC CONNECTOR,Male, 6 Pin

To Front Frame Harness, (C131F)

1шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

Park Brake Solenoid, (C138)

1шт.

5

245482C1

ELEC CONNECTOR,2 Pin

Park Brake Pressure Switch, (C137M)

1шт.

6

225316C1

ELEC CONNECTOR,Female, 2 Pin

Hydraulic Oile Temp, (C132M)

1шт.

7

PL

PROCURE LOCALLY

M10 Stud, Hydraulic Oil Filter Restriction Switch Ground, (C129)

1шт.

8

PL

PROCURE LOCALLY

M5 Stud, Hydraulic Oil Filter Restriction Switch, (C136)

1шт.
