(55.100.03[01]) - HARNESS - HEADLAMPS

Запчасти Case IH STEIGER 350 (55.100.03[01]) - HARNESS - HEADLAMPS (55) - ELECTRICAL SYSTEMS

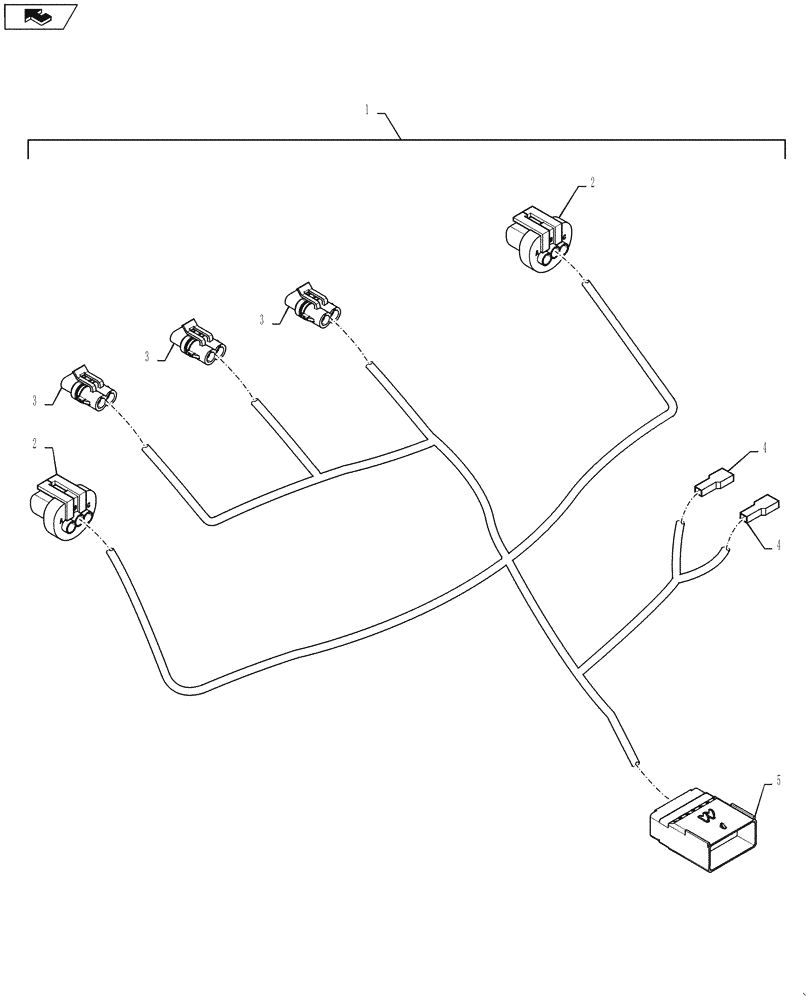

Схема запчастей Case IH STEIGER 350 - (55.100.03[01]) - HARNESS - HEADLAMPS (55) - ELECTRICAL SYSTEMS
4
3
2
3
5
3
1
2
4
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84199717

WIRE HARNESS

Chassis Lights - Incl 2 - 5

1шт.

2

198714A1

CONNECTOR, ELEC

(C159, C163)

2шт.

3

87686685

WIRE CONNECTOR,Female

(C160, C164, C166)

3шт.

4

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

Horn, (C167, C168)

2шт.

5

87382927

ELEC CONNECTOR,Male, 14 Cavities

To Front Frame Harness

1шт.
