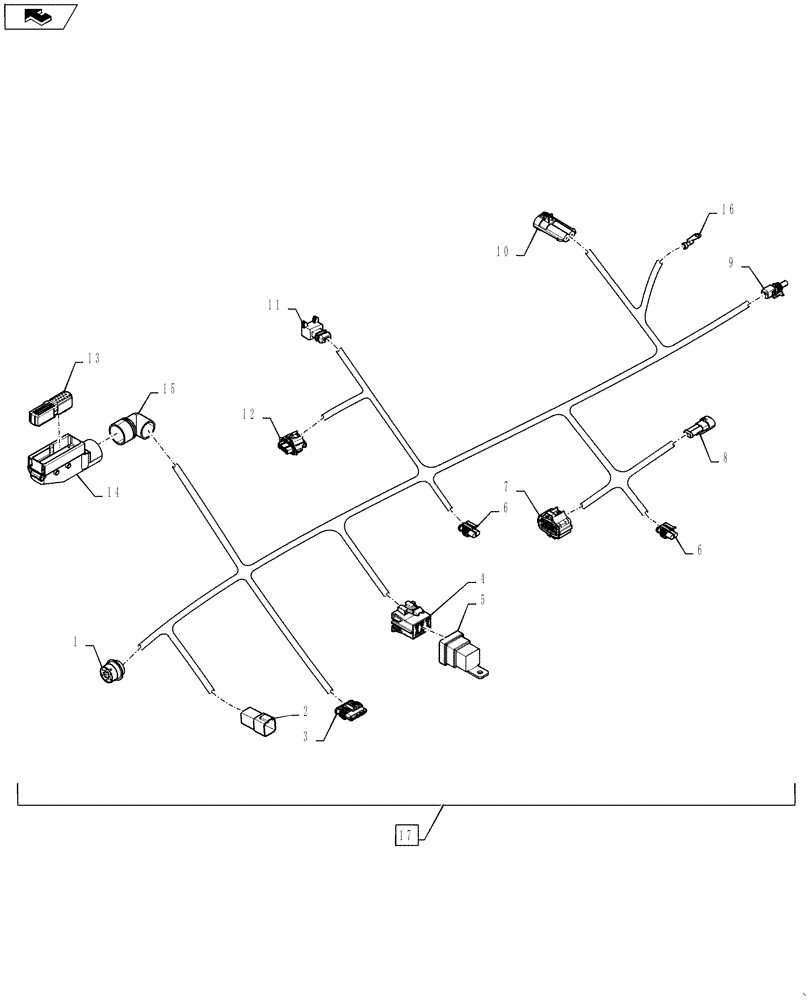

Запчасти Case IH STEIGER 350 (55.100.01[02]) - HARNESS - ENGINE - 9L EVGT ENGINE - STEIGER 350 (55) - ELECTRICAL SYSTEMS

1

87703918

TERMINAL CONNECTOR

21 Pin, To Front Frame Harness (C100M)

1шт.

2

225350C1

ELEC CONNECTOR,Male, 6 Pin

6 Pin, To Front Frame Harness (C150F)

1шт.

3

87688719

ELEC CONNECTOR,Female, 5 Cavities

5 Pin, Vistronic Fan (152)

1шт.

4

87710584

WIRE CONNECTOR

4 Pin, EVGT Relay (C154)

1шт.

5

86508603

RELAY,12V

4 Pin, EVGT Relay (C154)

1шт.

6

371614A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin, Grid Heater Relay,EVGT Power/Ground (C172)

2шт.

7

87694583

ELEC CONNECTOR

12 Pin, Dashboard Connector (C153)

1шт.

8

371615A1

CONNECTION,ELECTRIC

2 Pin, EVGT Can Bus (C171)

1шт.

9

245480C1

ELEC CONNECTOR,1 Pin

(C174)

1шт.

10

292549A1

CONNECTOR, ELEC

2 Pin, A/C High Pressure SW (C175)

1шт.

11

291718A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin, Air Filter Restriction (C179)

1шт.

12

87709809

ELEC CONNECTOR

4 Pin, Temp/Humidity Sensor (C151)

1шт.

13

8602412

CONTACT

89 Pin, Vehicle Connector (C176)

1шт.

14

8602413

COVER

Housing - for item 13

1шт.

15

8602414

ELBOW

90 Degree

1шт.

16

PL

PROCURE LOCALLY

Ring Terminal, M5 Stud, To Alternator D Terminal (C177)

1шт.

17

84329920

HARNESS

9 L EVGT Engine Harness - Inc. items 1 thru 17

1шт.
