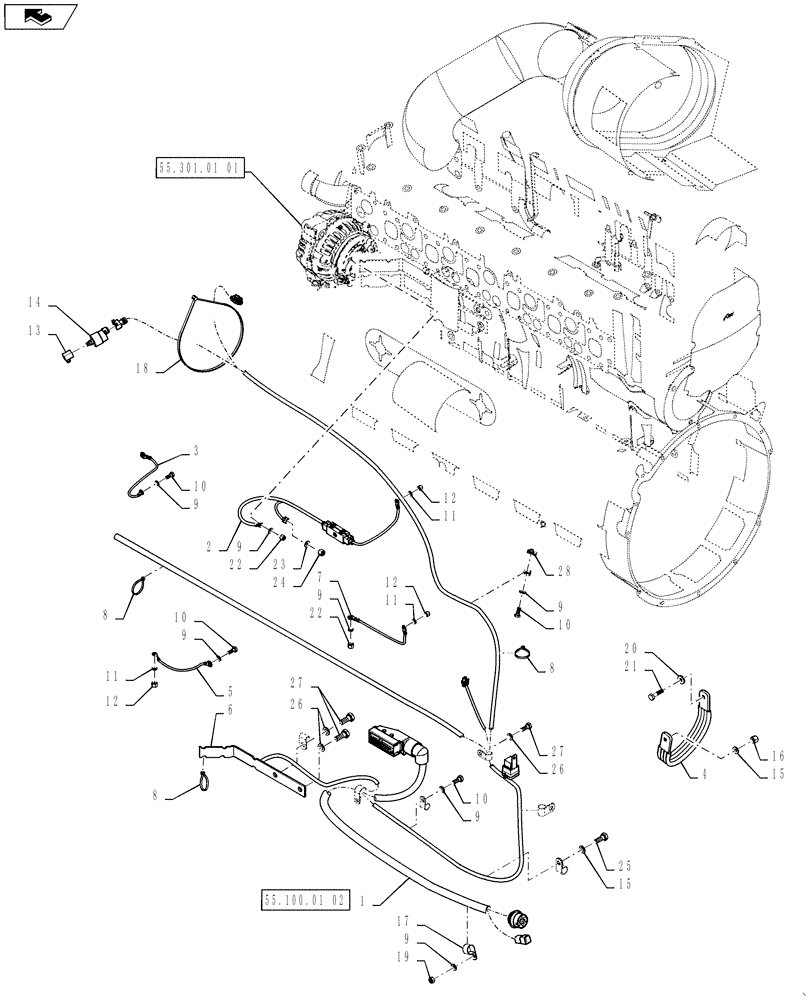

Запчасти Case IH STEIGER 350 (55.100.01[01]) - HARNESS - ENGINE INSTALLATION - ENGINE 9L - STEIGER 350 (55) - ELECTRICAL SYSTEMS

1

84329920

HARNESS

Engine, 9L - See Figure 55.100.01(02)

1шт.

2

84282620

CABLE

ASM Grid Heater

1шт.

3

87353517

GROUND CABLE

9L AC Compressor Ground

1шт.

4

87362573

GROUND CABLE

Engine to Chassis Ground

1шт.

5

84282618

CABLE,135mm L

Grid Heater Ground

1шт.

6

84417535

BRACKET

Fan Harness Guide

1шт.

7

84282633

CABLE

Positive Relay to Grid Heater

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

Nylon, 7-8 In

7шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

10

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

13

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

14

293797A1

RESTRICTION SWITCH

Air Restriction - Male Thread

1шт.

15

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

16

829-1412

NUT,M12, Cl 10.9

1шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

1шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

20

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

21

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

1шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

23

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

24

832-10405

NUT,M5 x .8, Cl 8

1шт.

25

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

27

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

28

833-40408

NUT,M8, U

2шт.
