Запчасти Case IH STEIGER 350 (41.930.01) - CONTROL - VALVE - PRIORITY / STEERING (41) - STEERING

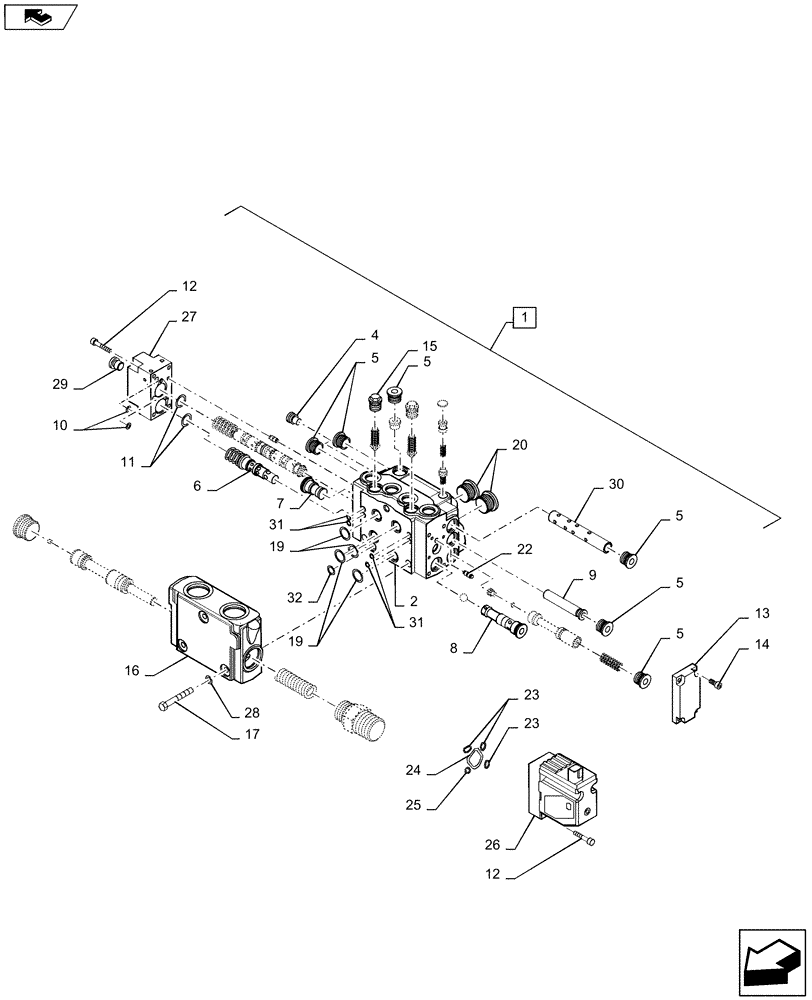

Схема запчастей Case IH STEIGER 350 - (41.930.01) - CONTROL - VALVE - PRIORITY / STEERING (41) - STEERING
5
15
17
4
14
23
9
13
29
6
28
2
12
20
12
31
31
1
26
32
16
10
24
home
5
19
19
22
27
8
5
11
5
30
5
25
7
23

Артикул

Название

Примечание

Количество

1

87585897

HYDRAULIC VALVE

Priority / EHPS Non-Autoguidance, Incl 2 - 20

1шт.

1

87585897R

REMAN-HYD VALVE

EHPS Non-Autoguidance

1шт.

1

87585897C

CORE-VALVE HYD

Return Number

1шт.

1

84180916

VALVE

Priority / EHPS Non-Autoguidance, Incl 2 - 20, Steiger 600 & QuadTrac 600

1шт.

1

87585898

HYDRAULIC VALVE

Priority / EHPS Autoguidance, Incl 2 - 32

1шт.

Used with ACCUGUIDE Applications.

1шт.

1

87585898R

REMAN-HYD VALVE

EHPS Autoguidance

1шт.

1

87585898C

CORE-VALVE HYD

Return Number

1шт.

1

84180914

VALVE

Priority / EHPS Autoguidance, Incl 2 - 29, Steiger 600 & QuadTrac 600

1шт.

Used with ACCUGUIDE Applications.

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Steering Valve, Incl in 1

1шт.

3

87397327

SEAL KIT

EHPS

1шт.

4

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

6шт.

6

NSS

NOT SOLD SEPARAT

Bushing, w/ O-Ring, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

5шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

4шт.

12

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

4шт.

15

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

2шт.

16

NSS

NOT SOLD SEPARAT

Housing, Priority Valve, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

3шт.

18

87397328

SEAL KIT

OLS Priority Valve

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

4шт.

20

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

2шт.

21

87397329

SEAL KIT

PVE

1шт.

Used with ACCUGUIDE Applications.

1шт.

22

87540544

VALVE

Shuttle

2шт.

Used with ACCUGUIDE Applications.

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

3шт.

Used with ACCUGUIDE Applications.

1шт.

24

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

Used with ACCUGUIDE Applications.

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

Used with ACCUGUIDE Applications.

1шт.

26

87540543

MODULE

Solenoid, PVEH

1шт.

Used with ACCUGUIDE Applications.

1шт.

27

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

3шт.

29

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

1шт.

30

87397330

SEAL KIT

PVBZ Accusteer

1шт.

Used with ACCUGUIDE Applications.

1шт.

31

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

4шт.

32

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

33

47504616

SEAL KIT

(Not Shown)

1шт.

34

47504608

SEAL KIT

(Not Shown)

1шт.

35

47504604

SEAL KIT

(Not Shown)

1шт.

36

47504602

SEAL KIT

(Not Shown)

1шт.

37

47504600

SEAL KIT

(Not Shown)

1шт.

38

47504598

SEAL KIT

(Not Shown)

1шт.

39

87756425

COIL

Coil (Not Shown)

1шт.

Выбрано товаров: 55
