Запчасти Case IH STEIGER 350 (41.200.01[01]) - STEERING CYLINDER HYD. LINE (41) - STEERING

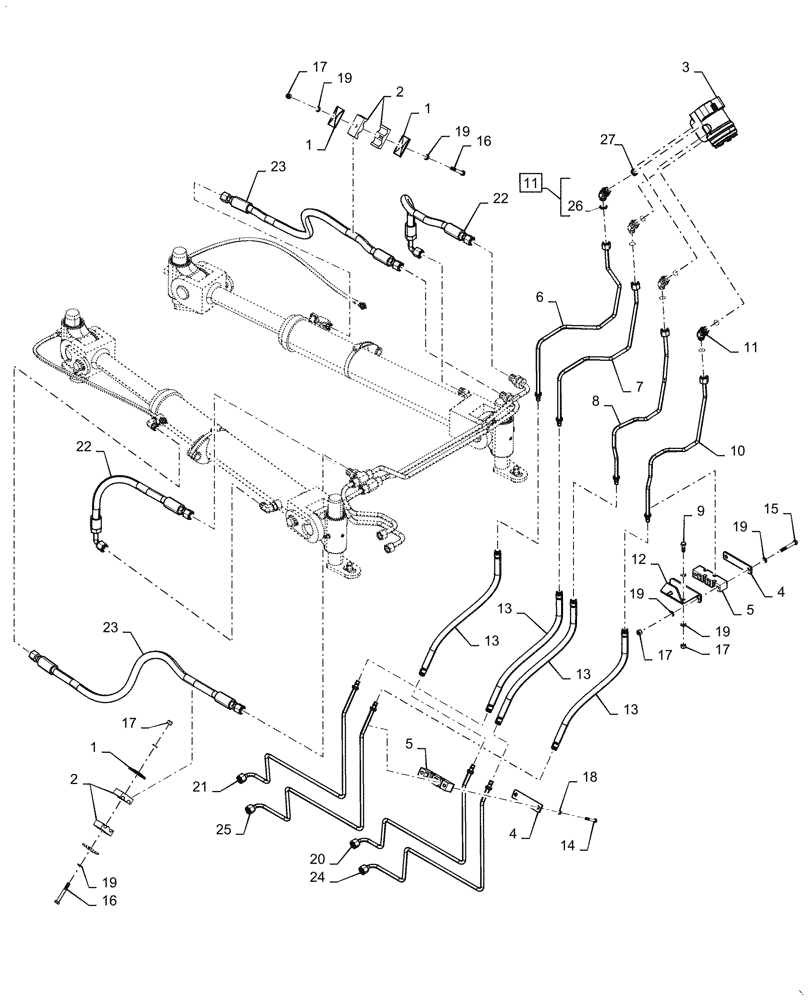

Схема запчастей Case IH STEIGER 350 - (41.200.01[01]) - STEERING CYLINDER HYD. LINE (41) - STEERING
4
1
5
19
20
17
24
16
15
14
2
9
19
19
18
12
10
16
8
2
19
1
5
4
23
11
13
13
23
6
13
19
17
26
11
3
21
17
25
22
1
19
27
22
7
13
17

Артикул

Название

Примечание

Количество

1

50-2533T1

PLATE

Cover

4шт.

2

50-2551T1

CLAMP

Tube

4шт.

3

87667045

STEERING VALVE

Pilot

1шт.

4

87436024

MOUNTING PARTS

Bar Hose

2шт.

5

87403324

BRACKET

Hyd. Tube Mounting

2шт.

6

87312093

TUBE,9.52 mm OD

Port " T "

1шт.

7

87312091

TUBE,9.52 mm OD

Port " P "

1шт.

8

87312089

TUBE,9.52 mm OD

Port " L "

1шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

10

87312087

TUBE,9.52 mm OD

Port " R "

1шт.

11

87358966

ELBOW,45 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB

Incl 26

4шт.

12

84340158

BRACKET, SUPPORTING

STG Support Cab

1шт.

13

84179133

HOSE ASSY.,9.53mm ID x 491mm L, SAE 100R1

Steering Control

4шт.

14

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

15

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

16

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

20

84179096

HYD TUBE,9.52 mm OD

Steering Priority, Tank

1шт.

21

84179090

HYD TUBE,9.52 mm OD

Steering Priority, Pressure

1шт.

22

47498735

HOSE ASSY.,12.7mm ID x 550mm L

STG Control

2шт.

23

47599809

HOSE

STG Control

2шт.

24

84179085

HYD TUBE,9.52 mm OD

Steering Priority, RH

1шт.

25

84179079

HYD TUBE,9.52 mm OD

Steering Priority, LH

1шт.

26

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

Выбрано товаров: 27
