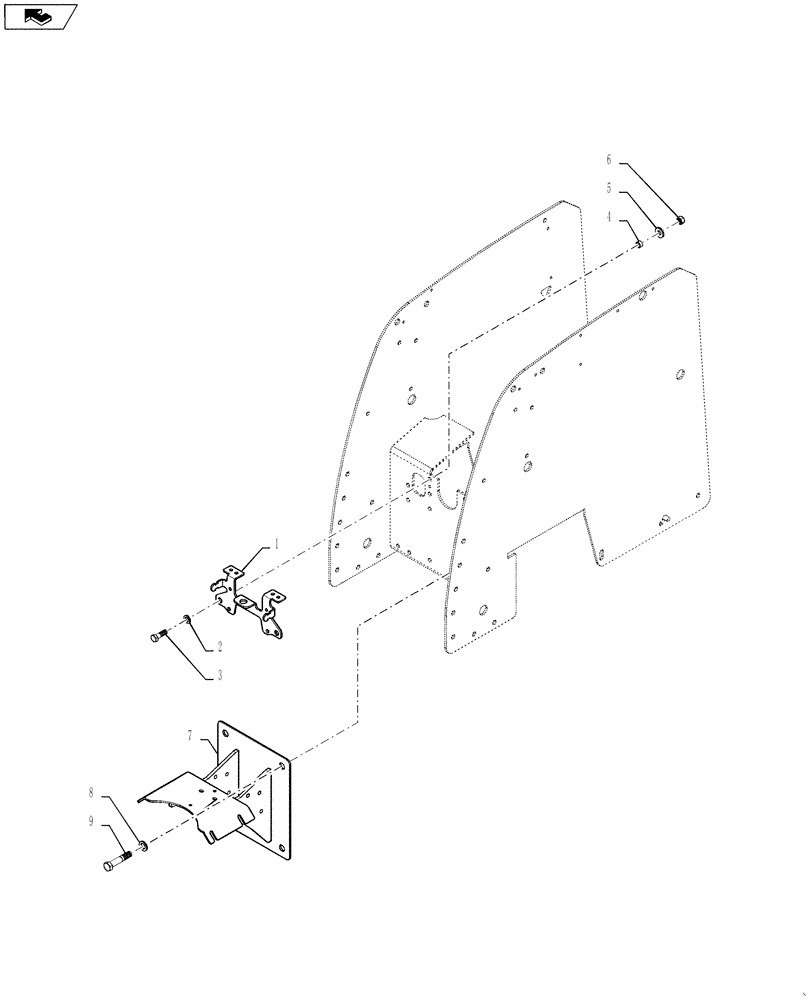

Запчасти Case IH STEIGER 350 (39.100.07) - AUXILIARY CONTROL VALVE - MOUNTING & OPTIONAL PTO BRACKET - W/O PTO & THREE POINT HITCH (39) - FRAMES AND BALLASTING

1

84160919

HANGER

Optional PTO

1шт.

2

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

3

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

4

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

5

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

6

829-1416

NUT,M16, Cl 10

2шт.

7

87311759

MOUNTING PARTS

Auxiliary Valve

1шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

4шт.
