Запчасти Case IH STEIGER 350 (39.100.05) - BUMPER - FRONT (39) - FRAMES AND BALLASTING

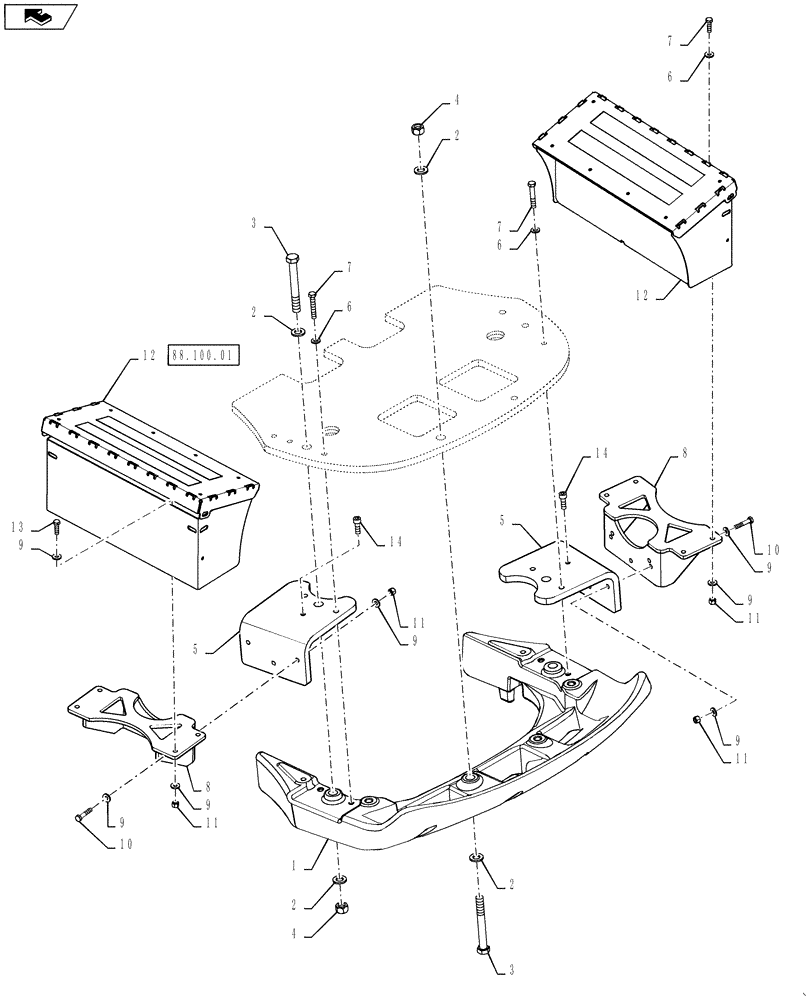

Схема запчастей Case IH STEIGER 350 - (39.100.05) - BUMPER - FRONT (39) - FRAMES AND BALLASTING
11
9
6
home
9
7
11
5
6
3
7
4
7
10
9
3
2
2
11
14
2
6
14
1
11
4
8
8
13
9
88.100.01
12
5
9
9
10
9
12
2

Артикул

Название

Примечание

Количество

1

84206442

BALLAST

Front Bumper

1шт.

See figure 88.039.02 for DIA Kit

1шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

16шт.

3

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

8шт.

4

829-1420

NUT,M20, Cl 10

8шт.

5

84210255

BRACKET, SUPPORTING

4шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

8

84187148

BRACKET

Storage Box - Wheeled

2шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

10

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

6шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

14шт.

12

NSS

NOT SOLD SEPARAT

Tool Box, See Figure 88.100.01 for Service Parts

2шт.

13

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

14

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

2шт.

Выбрано товаров: 15
