Запчасти Case IH STEIGER 350 (39.100.02) - REAR FRAME, STEIGER 350 (39) - FRAMES AND BALLASTING

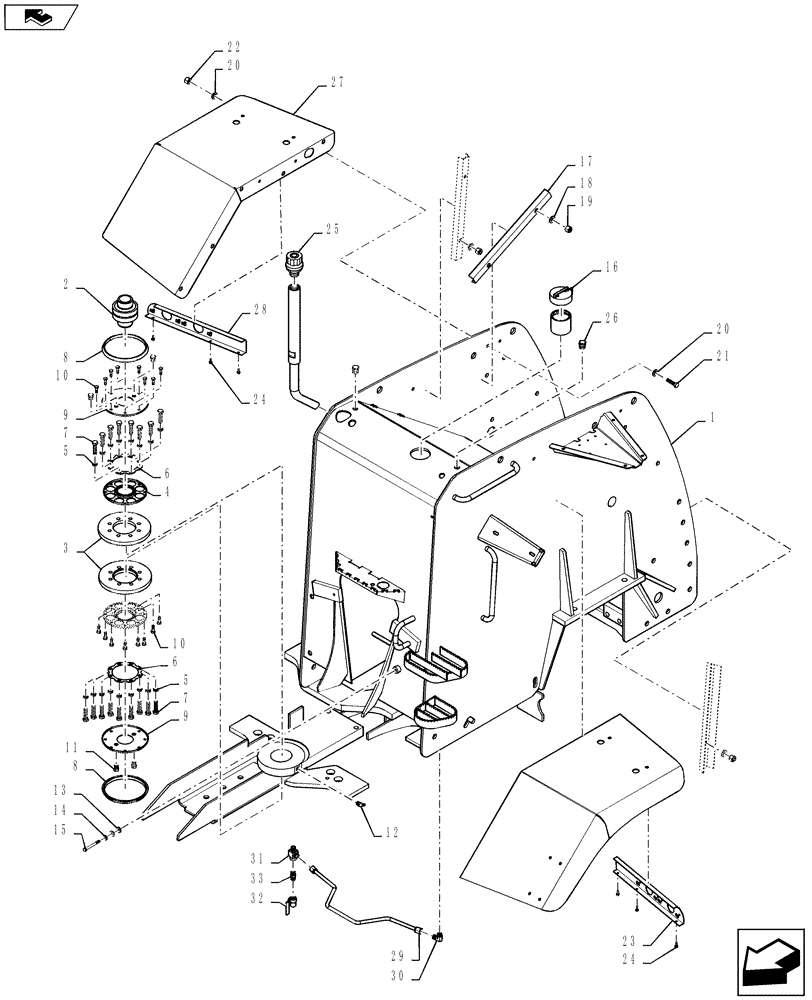

Схема запчастей Case IH STEIGER 350 - (39.100.02) - REAR FRAME, STEIGER 350 (39) - FRAMES AND BALLASTING
11
22
13
6
23
20
21
33
5
20
24
15
10
5
2
10
27
19
18
30
8
9
6
9
12
31
26
28
29
home
3
14
25
7
1
7
4
8
32
16
24
17

Артикул

Название

Примечание

Количество

1

84162524

FRAME

Rear

1шт.

2

87311338

SPHERICAL BEARING,50.98mm ID x 120.64mm OD x 145.2mm W

Extended Spherical Plain

1шт.

3

330032A1

COVER

Retaining

2шт.

4

87365383

BEARING ASSY

Assembly

2шт.

5

432444A1

SPACER

Retainer

16шт.

6

430250A1

RETAINER

Plate

2шт.

7

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

16шт.

8

433478A1

SEAL

Seal, Outer

2шт.

9

87365381

COVER

2шт.

10

463-61010

SCREW,Hex, #10 - 32 x 5/8"

16шт.

11

88071

PLUG

1/8-27 NPTF

4шт.

12

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1шт.

13

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

Window Catch

2шт.

14

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

15

76083463

HANDLE

Linkage Channel

1шт.

16

87555106

LOCKABLE FUEL CAP

1шт.

17

84348150

CHANNEL

Wire Guard

3шт.

18

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

19

412250

NUT,M8 x 1.25, Cl 8

6шт.

20

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

21

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

3шт.

22

87497916

NUT,Hex, M12 x 1.75, Cl 8

M12

5шт.

23

84162390

COVER

Left Hand Fender Light

1шт.

24

86625224

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

1/4 X .75

6шт.

25

435545A1

BREATHER

1шт.

26

86637723

PLUG,Hex Hd, 1/2"-14 NPTF

2шт.

27

84348152

FENDER

Right Hand

1шт.

28

84162377

COVER

Right Hand Fender Light

1шт.

29

84359547

TUBE

Fuel Crossover

1шт.

30

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

31

31-1000

TEE

.5 NPT Female x .5 NPT Male x .63 Tube

1шт.

32

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Ball, 1/4 - 14 NPTF Steel

1шт.

33

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

34

47419481

SEAL

SEAL Foam Fender (Not Shown)

2шт.

Выбрано товаров: 34
