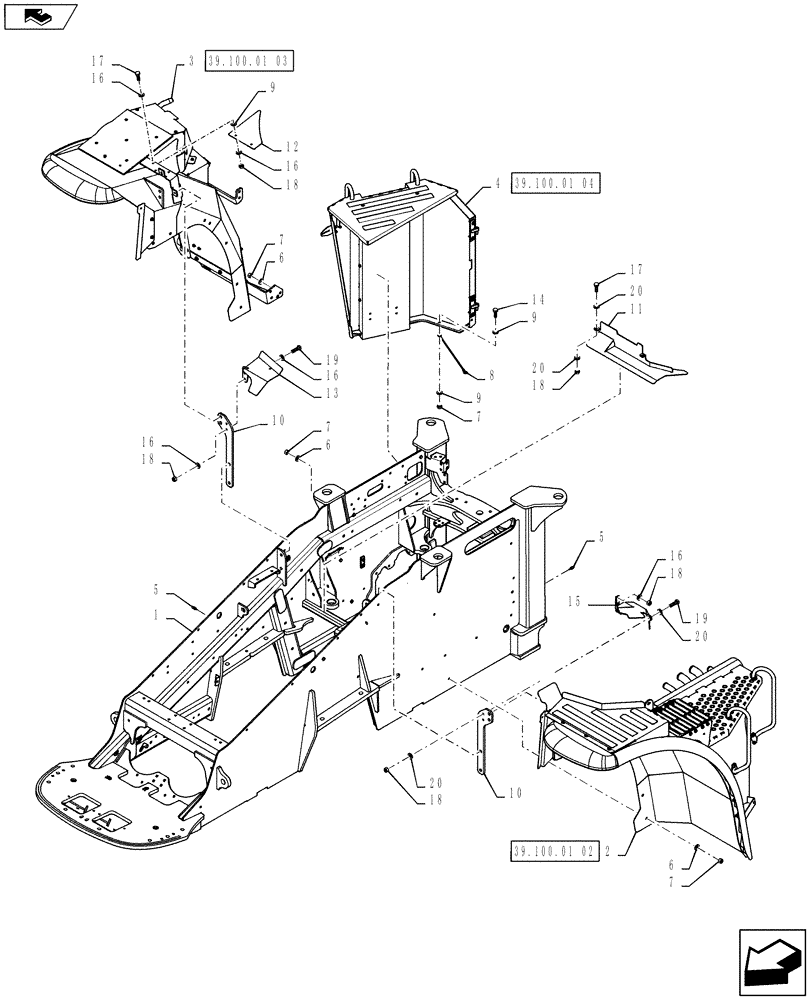

Запчасти Case IH STEIGER 350 (39.100.01[01]) - FRAME - FRONT - N/A WHEELED (39) - FRAMES AND BALLASTING

1

84381558

FRAME

Front, 9L, Steiger 350 without Suspended Cab

1шт.

1

84514079

FRAME

Front, 9L, Steiger 350 with Suspended Cab

1шт.

1

84381559

FRAME

Front, 13L, Steiger 400-450 without Suspended Cab

1шт.

1

84514069

FRAME

Front, 13L, Steiger 400-450 with Suspended Cab

1шт.

2

Tank Assembly, Hydraulic

1шт.

See Figure 39.100.01(02) for Service Parts|2|Se Figure 39.100.01(03)

1шт.

3

Fender Assembly, Right Hand

1шт.

See Figure 39.100.01(03) for Service Parts

1шт.

4

Door Assembly, Right Hand

1шт.

See Figure 39.100.01(04) for Service Parts

1шт.

5

426285A1

STUD

38шт.

6

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

24шт.

7

337475

NUT,M12, Cl 10

22шт.

8

87372424

CABLE RETAINER

Battery Door

1шт.

9

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

10

84370084

BRACKET, SUPPORTING

Support, Fender

2шт.

12

84363715

PROTECTION PLATE

Shield, RH Side Row Crop

1шт.

13

84363716

PROTECTION PLATE

Shield W, RH Side Debris Row Crop

1шт.

14

84372218

BRACKET

Shield, Exhaust

1шт.

15

84516016

PROTECTION PLATE

Shield W, Mount LH Debris Heat

1шт.

16

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

12шт.

17

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

18

16100821

NUT,M8, Cl 10

12шт.

19

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

20

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.
