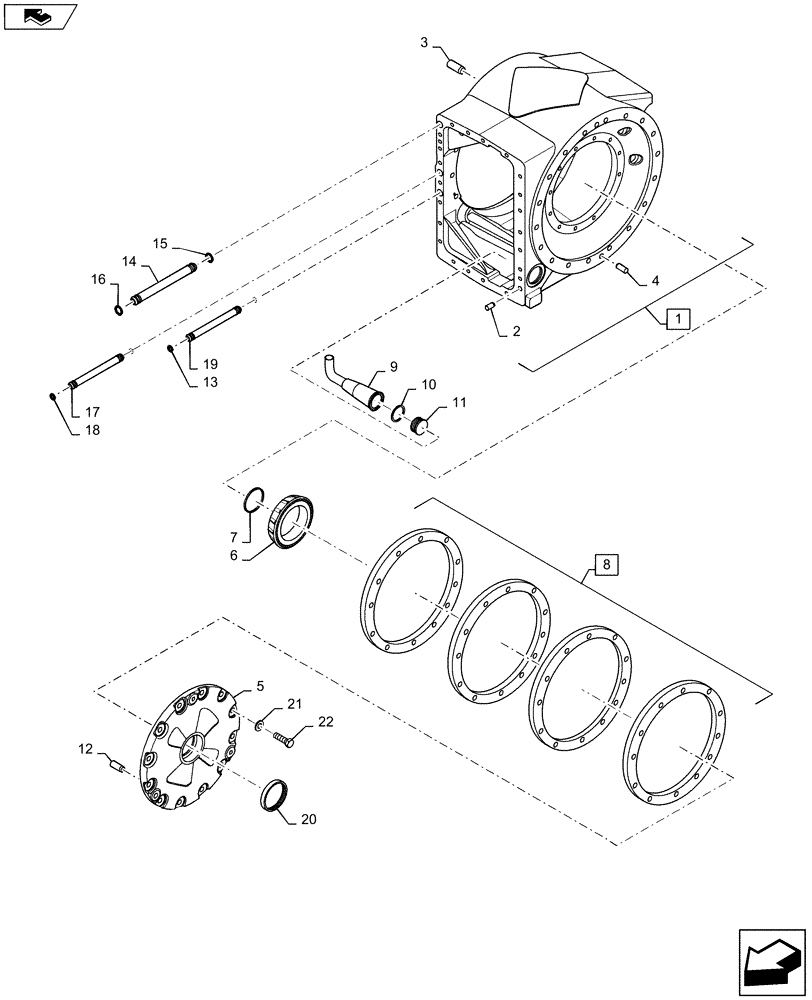

Запчасти Case IH STEIGER 350 (27.106.01) - AXLE - ASSY - 315 SERIES - CENTER & LH BEARING ASSY. (27) - REAR AXLE SYSTEM

1

388968A1

CARRIER

Center Axle, Incl 2, 3, 4

1шт.

2

86639247

DOWEL,M12 x 25

2шт.

3

837-16080

DOWEL,M16 x 80

2шт.

4

86639248

PIN,16mm OD x 40mm L

2шт.

5

231637A2

COVER,66 mm ID x 136 mm OD x 71.45 mm

LH Differiential

1шт.

6

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

7

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Diff. Bearing Seal

1шт.

8

255121A1

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

8

255122A1

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

8

255123A1

SHIM,290mm ID x 345mm OD x 0.13mm Thk

1шт.

8

255124A1

SHIM,290mm ID x 345mm OD x 0.5mm Thk

1шт.

9

229553A3

TUBE

Suction

1шт.

10

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

11

353-281

PLUG,2 1/4", Non Threaded

1шт.

12

837-6055

DOWEL,M6 x 55

1шт.

13

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

14

84236913

TUBE

Service Brake Jumper

1шт.

15

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

16

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

17

329808A1

TUBE,7.5 mm ID, 11.85 - 15 mm OD, 117 mm Length

Lube Jumper

1шт.

18

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

19

245162A1

TUBE,7mm ID x 11.85mm OD x 110.5mm Length

Diff Lock Jumper

1шт.

20

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

2шт.

21

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

Bevel, Pinion Bearing Cage

12шт.

22

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.
