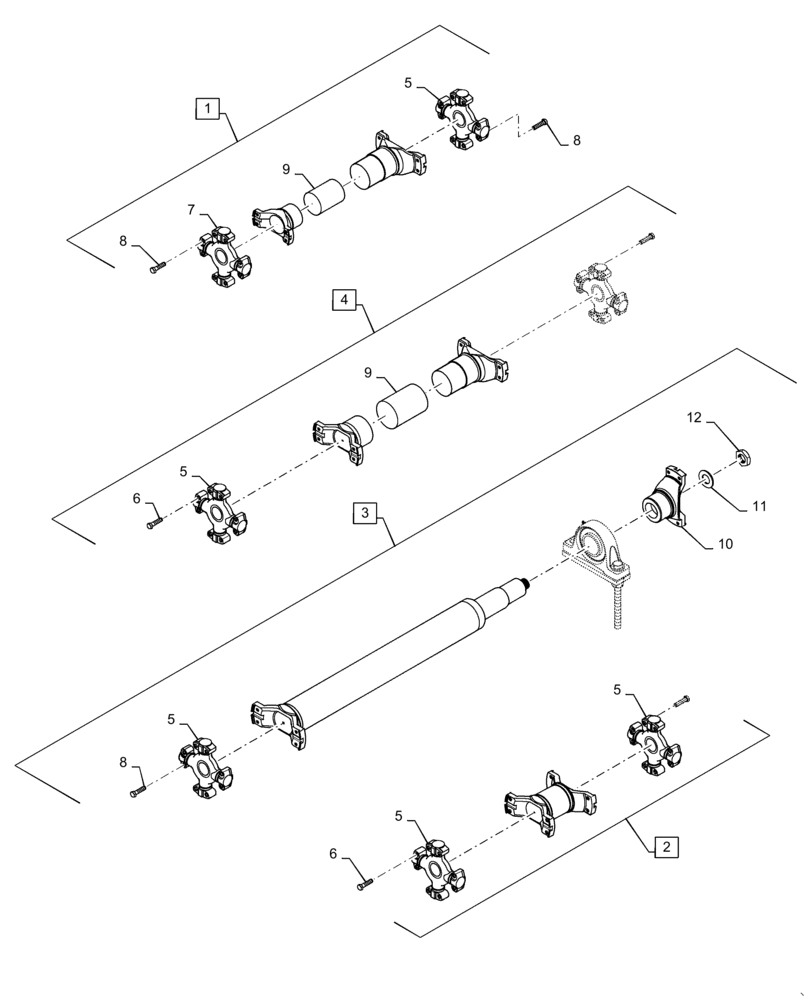

Запчасти Case IH STEIGER 350 (25.310.03) - DRIVE SHAFT - 9L ENG., 8C - STEIGER 350 (25) - FRONT AXLE SYSTEM

1

84202403

DRIVE SHAFT

9L Engine, Inc. 5,7,8 & 9

1шт.

2

84219450

DRIVE SHAFT

Front Axle, Inc. 5 & 6

1шт.

3

84302363

DRIVE SHAFT

Rear Axle, Inc. 5,8,10,11 & 12

1шт.

4

84221212

DRIVE SHAFT

Articulation, Inc. 5,6 & 9

1шт.

5

86000308

UNIVERSAL JOINT

Bearing Assy. 8C Spider - Engine End

6шт.

6

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

16шт.

7

431620A1

U-JOINT SPIDER

7C - Damper End

1шт.

8

87015724

BOLT,M12 x 1.75 x 62.68mm OAL, Cl 10.9

8шт.

9

404151A1

SEAL,76.2mm ID x 93.98mm OD x 11.68mm Thk

Driveshaft Wiper

2шт.

10

404451A1

YOKE

8C

1шт.

11

86637815

WASHER,1.31" ID x 2.5" OD x 0.15" Thk

1шт.

12

86637649

LOCK NUT,1 1/4"-18

1шт.
