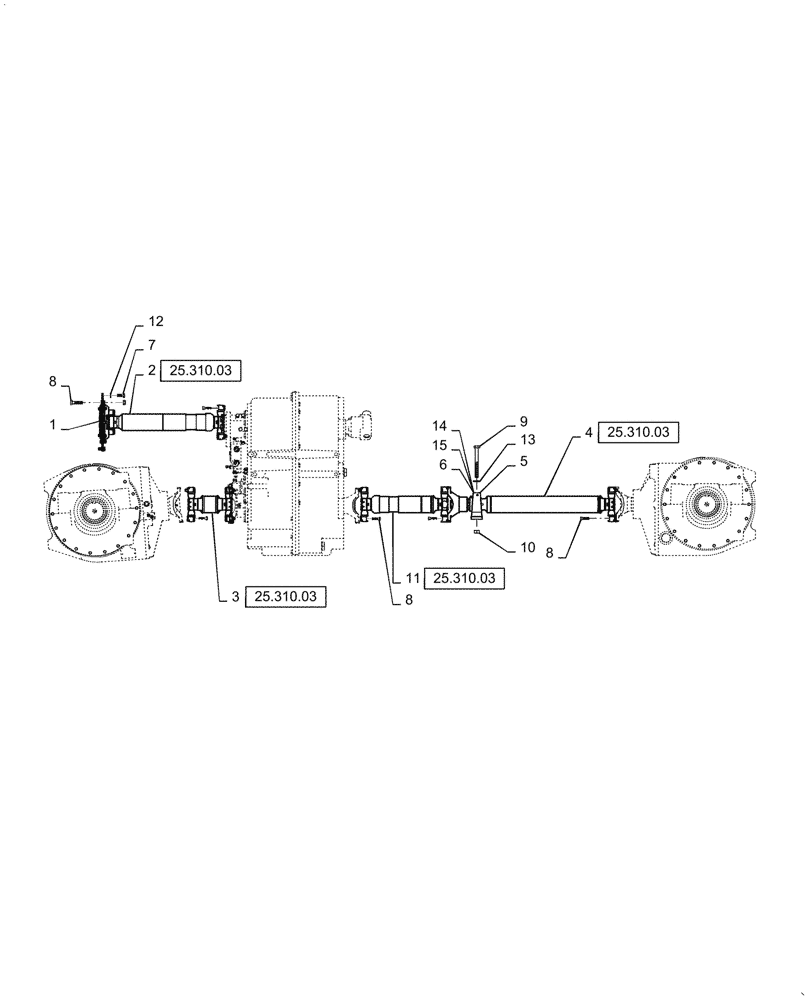

Запчасти Case IH STEIGER 350 (25.310.01) - DRIVE SHAFT LAYOUT - 9L, 8C - STEIGER 350 (25) - FRONT AXLE SYSTEM

1

84146340

DAMPER

Torsional, 7C

1шт.

1

84146340R

REMAN-DAMPER

Reman Torsional, 7C

1шт.

1

84146340C

CORE-DAMPER

Core Return Number

1шт.

2

84202403

DRIVE SHAFT

Engine

1шт.

3

84219450

DRIVE SHAFT

Front Axle

1шт.

4

84302363

DRIVE SHAFT

Rear Axle

1шт.

5

406056A1

SPACER

Pillow Bearing

1шт.

6

87385925

BEARING CARRIER,68.26mm ID

Pillow Block, Incl 14 - 16

1шт.

7

47379837

BOLT

BOLT (Replaces 43260 This Application)

6шт.

8

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

28шт.

9

86639168

BOLT,Hex, M20 x 250mm, Cl 10.9

2шт.

10

829-1420

NUT,M20, Cl 10

2шт.

11

84221212

DRIVE SHAFT

Articulation

1шт.

12

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

13

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

14

425-146

JAM NUT,3/8" - 16, Gr 5

Jam

1шт.

15

84-63812

SET SCREW,Hex Soc, 3/8"-24 x 3/4"

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
