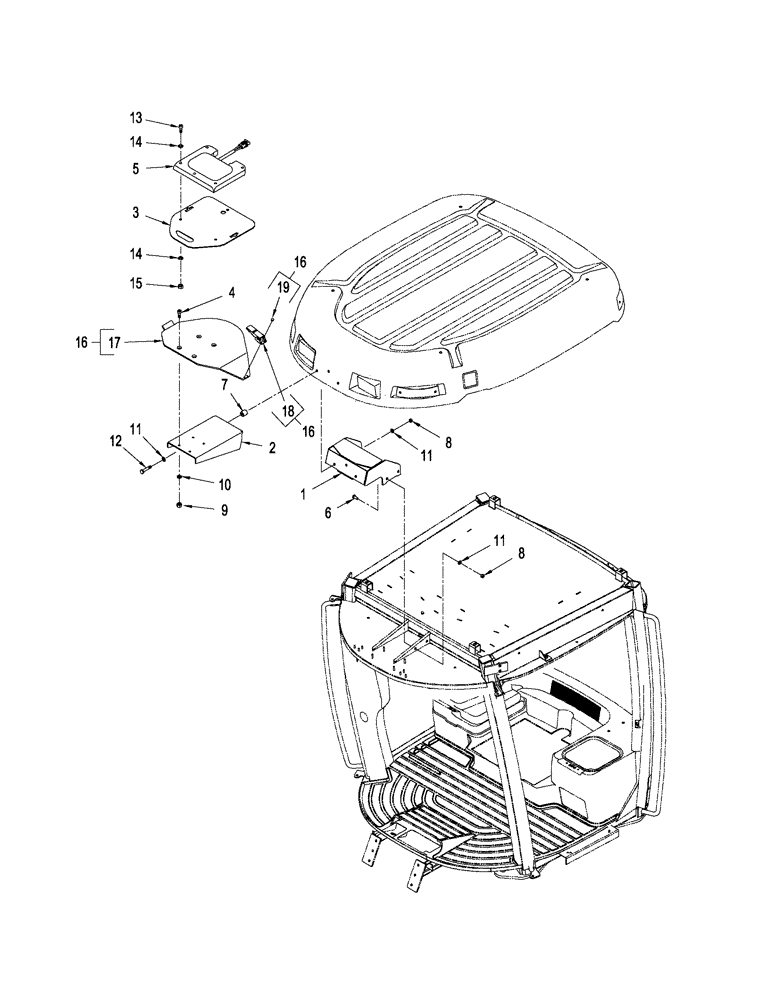

Запчасти Case IH STEIGER 335 (04-36) - ACCUGUIDE, GPS - MOUNTING (04) - ELECTRICAL SYSTEMS

1

87304763

MOUNTING PARTS

GPS Mounting

1шт.

2

87758642

BRACKET

Antenna Mounting

1шт.

3

87568855

MOUNTING PLATE

Portable Receiver

1шт.

4

843-1825

SCREW,Flat , M8 x 25mm, Cl 4.8

4шт.

5

87308224

MODULE

Receiver

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

7

87304771

SPACER

3шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

12

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

3шт.

13

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

15

825-5146

SERRATED NUT,M6, Flg Ser

3шт.

16

87528080

BASE PLATE

GPS Antenna, Inc. 17 - 19

1шт.

17

87528045

BASE PLATE

1шт.

18

87308870

LATCH

GPS Mounting

1шт.

19

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

2шт.
